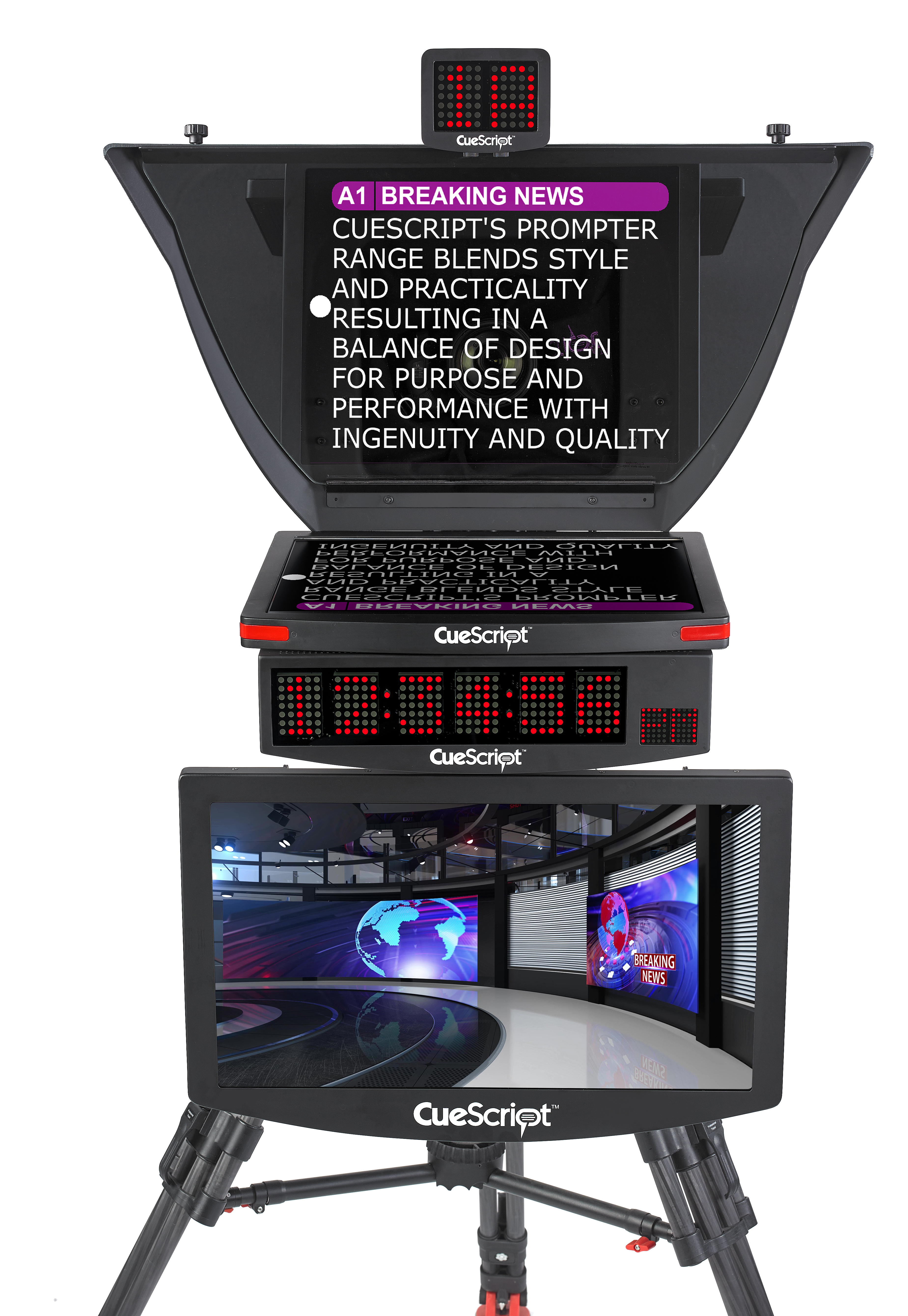

CSMV222

Technical Specification:

Part Number:      CSMV222
Screen Size:        21.3-inch diagonal
Display Area:      432.11(H) x 323.17(V)mm
Native Resolution: 1600 x 1200 (UXGA)
Brightness:         1500 cd/m2
Contrast Ratio:   1000:1
Viewing Angle:    169°(H), 169°(V)
Backlight Technology:  High Brightness LED

Dimensions:
Front to Back: 14.8” (378mm)
Right to Left: 19” (483mm)
Depth: 2.6” (64mm)
Weight:  12.25 lb/5.57 kg

Supported Video Standards:
SD/HD/3G-SDI (SMPTE 259M-C, SMPTE 292M and SPTE424M),
HDMI 1.4a
Composite (PAL/NTSC/SECAM),
ST2110 – optional

Connectors:
2 x Ethernet - CueTALK®
1 x USB B CueTALK®
2 x USB A (Multipurpose)
2 x BNC SD/HD/3G-SDI
1 x BNC Composite Video
1 x BNC Auxiliary SD/HD/3G-SDI
1 x HDMI 1.4a
1x SFP+ (Supported standard ST2110)
1 x mini-XLR (LTC)
1 x USB B-Mini (Tally)
Timecode:  LTC/VITC/DVITC
Power Inputs / Outputs:
1 x IEC AC IN (100-240VAC / 50-60Hz)
1 x XLR 4-Pin IN (9-18VDC)
1 x XLR 4-Pin OUT (12VDC @ 4A Max, only when powered via AC)

Power Consumption:
DC Max [46Watts] (with accessories CSCN & CSTD connected)
AC Max [41VA] (with accessories CSCN & CSTD connected)

Certifications:
CE, TUV, FCC, C-Tick, PSE, RoHs
