TM22 - 22

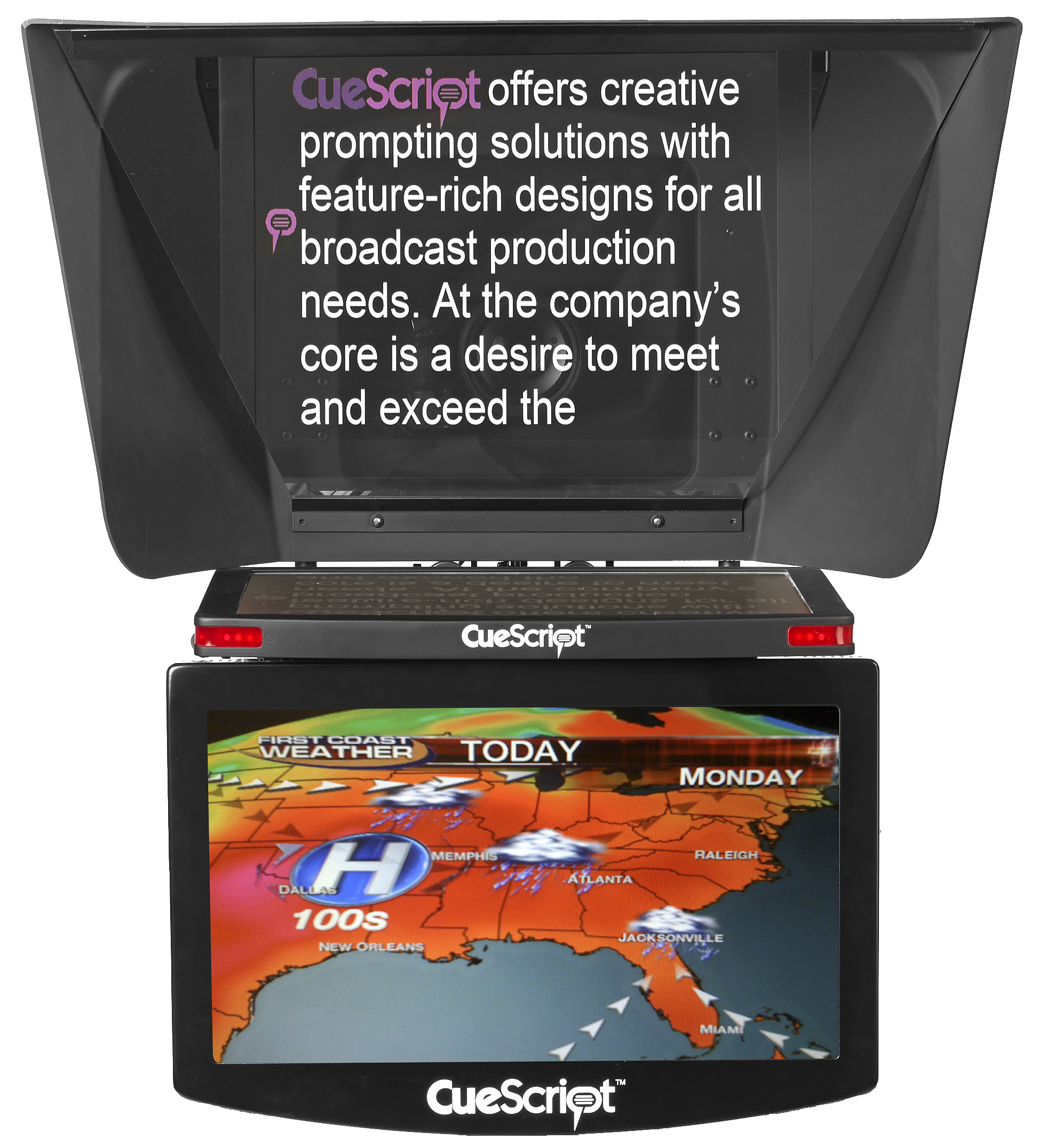

CueScript 22" 'on-air' Talent Monitor
Description
Technical Specification:
TM22 - 22" Talent Monitor
- Screen Size: 21.5" diagonal
- Display Area: 476mm(H) x 268mm(V)
- Brightness: 1500 cd/m2
- Contrast Ratio: 1000:1
- Native Resolution: 1920 x 1080 (WUXGA)
- Viewing Angle: 178°(H), 178°(V)
- Backlight Technology: LED
DIMENSIONS
- Height: 13.62" (346mm)
- Width: 20.85” (530mm)
- Depth: 1.9" (48mm)
- Weight: 8.2lbs/3.72kg
VIDEO
- Autosensing PAL/NTSC/HD-SDI/SD-SDI/VGA/DVI/HD Component
- Composite 75 Ohms
POWER INPUTS & CONNECTORS
- XLR 4pin 12V DC
CERTIFICATIONS
- CE, TUV, FCC, C-Tick, PSE, RoHs
MOUNTING
- Slides into the CueScript CSM or CSMV2 monitor range via integrated rails using the CSTMM Talent Monitor Mount.
Can attach to the CueScript EMC Monitor range with a modification.
