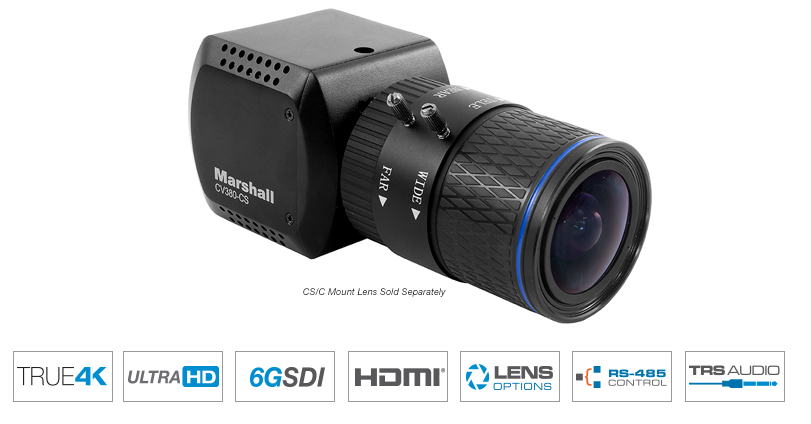

CV380-CS

Sensor

Image Sensor

Sony IMX 8.5 Megapixel 1/2.5” CMOS Sensor

Color

10bit, 4.2.2, ITU BT.709

Pixel Size

1.62 µm x 1.62 µm

Effective Pixel

3840 (H) x 2160 (V) – aspect ratio 16:9

Min. Illumination

Day (Color): 0.2 Lux,  Night (B/W): 0.02 Lux

Optics

Lens

CS/C mount lenses (sold separate)

Functions

Back Light Compensation

BLC, HLM

Exposure

Auto / Manual / AGC Fix / Shutter Fix

White Balance

AWB (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / Manual / Indoor / Outdoor / One Push

Day & Night System

Day (Color), Night (B/W), Auto

Electronic Shutter

NTSC: 1/30~1/10000,  PAL: 1/25~10000

Functions

Black Level, White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D+3D Noise Reduction, Defog, Digital zoom, DIS (Digital Image stabilizer), Gamma Correct, Color Matrix

Video

SDI

4096 x 2160p: 23.98, 24, 25, 29.97, 30 fps
3840 x 2160p: 23.98, 24, 25, 29.97, 30 fps
1920 x 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i: 50, 59.94, 60 fps
1280 x 720p: 50, 59.94, 60 fps

Outputs

HDMI

4096 x 2160p: 23.98, 24, 25, 29.97, 30 fps
3840 x 2160p: 23.98, 24, 25, 29.97, 30 fps
1920 x 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i: 50, 59.94, 60 fps
1280 x 720p: 50, 59.94, 60 fps

Audio

 Input

3.5mm TRS Stereo Audio Jack over I/O Cable (Mic and Line)

 Sample Rate

16/20/24/32 Bits

Control

RS485

SONY-VISCA protocol

Interface

General

Dimension

63mm (W) x 63mm (H) x 75.17mm (L)  (without lens)

weight

0.55 lbs (without lens)

Operation Temperature

-10 °C ~ 50°C

Power Input

12V DC (7V to 15VDC)

Power consumption

9.6W
