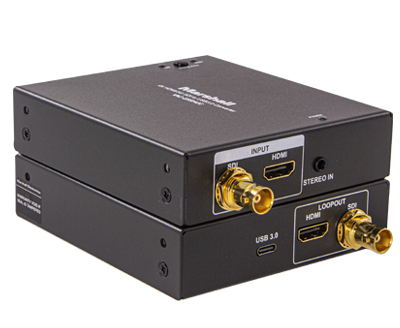

VAC-23SHUC

The VAC-23SHUC converts either 3GSDI or HDMI 2.0 to USB-C (USB3.0/USB2.0) up to UHD 3840x2160p at 30fps. 3GSDI and HDMI inputs have active loop-thru allowing the original high-quality source to be routed to monitors or other equipment as a pass thru. Common applications include live streaming, video conferencing and other PC or MAC-based applications.

Power is supplied by the USB-C connection to the host computer reducing clutter and eliminating the need for an external power supply. The rugged and compact design makes for easy portability and mobility.

The VAC-23SHUC's simple plug-and-play design uses UVC protocol to enable itself as a Camera Device. UVC protocol allows the host computer to set the parameters for the USB stream such as resolution, frame rate and aspect ratio.

• 3G/HDSDI input with active loop-through output supports formats up to 1080p50/60
• USB 3.0 output is YUY2 format (equivalent to SDI 4:2:2 sampling). USB 2.0 mode is MP4
• HDMI 2.0 input with active loop-through output supports formats up to 4096 x 2160 @ 30fps
• USB output audio sampling rate is 48 KHz
• Audio insert capability via 3.5mm stereo jack.
  Insert into HDMI requires existing audio track be present
• All power derived from USB port
• 10 Bit input sampling for improved image processing.
• Plug-and-Play operation. No special drivers required
• Compatible with popular applications including Zoom, Skype, OBS Studio, and many more

HDMI Color Sampling Formats supported:
1080p/720p: YCbCr 4:4:4 8/10/12bits, YCbCr 4:2:2 8bits and RGB 8/10/12bits 2160p: YCbCr 4:4:4 8bits, YCbCr 4:2:0 8/10/12bits, RGB 8bits

3GSDI Color Sampling Formats supported: YCbCr 4:2:2 10bits
