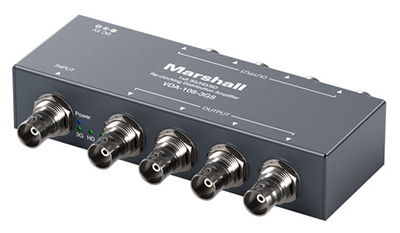

VDA-108-3GS

The VDA-108-3GS is a compact and reliable distribution amplifier which accepts a single SDI input and provides eight identical outputs. All embedded data is passed transparently. Signals are reclocked and cable equalization is provided to support long cable runs. The VDA-108-3GS is useful for providing video to multiple destinations (recorders, displays, encoders) from a single video source.

• 3G/HD/SD serial digital distribution
• Eight separately buffered and reclocked outputs
• Dual color LED indication of input lock and rate
• Supported Video Formats
  • 480i59.94 "NTSC", 576i50 "PAL"
  • 720p / 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
  • 1080i50, 59.94, and 60
  • 2048x1080p24 and 30 "2K"
• Supports Level A and B
• Passes all ancillary data
• Passes all ancillary data
• Compatible with USB power sources using 3rd party adapter cables
• Less than 1.25 Watts fully loaded
• Provides automatic input cable equalization up to 300m (1000ft)@SD, 150m (500ft)@HD/3G
• Reclocking function reshapes the signal to improve transmission distance
• Compact metal housing
