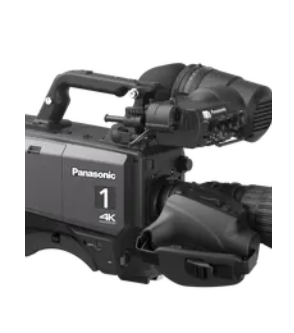

AK-UCX100
4K Studio Camera with superior flexibility and futureproof IP
Description
Principales caractéristiques
| Independent operation without a CCU |
| Supports 12G-SDI (x2), SMPTE ST 2110, NDI® High Bandwidth, SRT, and more |
| Supports network redundancy (SMPTE ST 2110) |
| Simultaneous HDR/HLG (BT.2020) and SDR (BT.709) |
| 2,000 TVL horizontal and vertical resolution |
Tableau des spécifications
| General -> Power Supply | DC 12 V (when using an external power supply) AC 240 V, 50 Hz/60 Hz(AK-UCU710/AK-UCU710S/AK-UCU700/AK-UCU700S/AK-CFA100 in connected) |
|---|---|
| General -> Power Consumption | 119 W (maximum, when connecting to external 12V and including supply to externally connected devices) 360 W (maximum, when AK-UCU710/AK-UCU710S/AK-UCU700/AK-UCU700S/AK-CFA100 is connected and including supply to an externally copnnected device) |
| General -> Operating Temperature | –10 °C to 45 °C (14 °F to 113 °F) (Preheating required under a temperature 0°C (32 °F) or below) |
| General -> Operating Humidity | 85% or less (relative humidity) |
| General -> Storage Temperature | −20 °C to 60 °C (−4 °F to 140 °F) |
| General -> Weight | Approx. 4.55 kg (9.90 lbs.) (body only, excluding the accessories) |
| General -> Dimensions | W 157 mm x H 267 mm x D 371.5 mm (5-31/32 inches x 10-17/32 inches x 14-21/32 inches) (excluding protrusions) |
| Camera Unit -> Pickup Device | 19.29 million pixels, MOS sensor |
