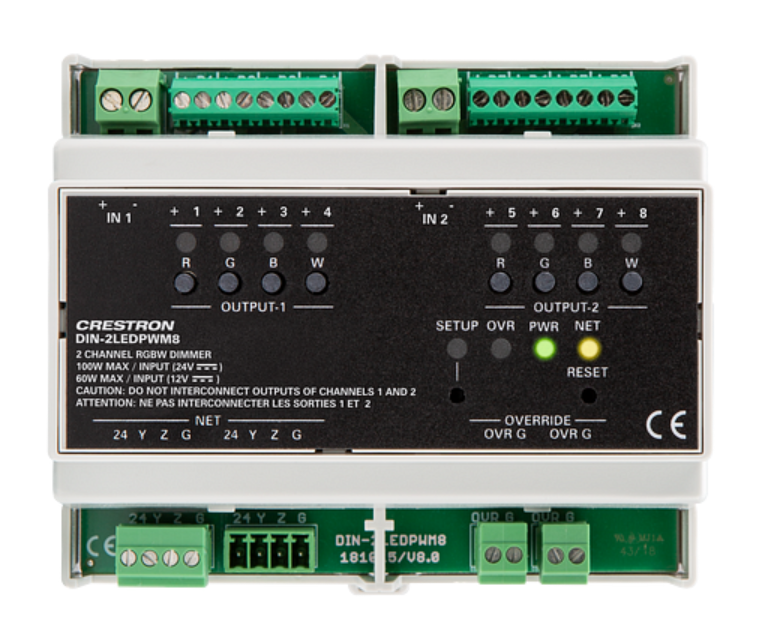

DIN-2LEDPWM8

The Crestron® DIN-2LEDPWM8 is a two-channel RGBW LED and LED strip dimmer. It uses pulse width modulation (PWM) frequency to provide flicker-free performance throughout the dimming range.

Visit the Crestron® Lighting Fixture Compatibility page to find out which Crestron lighting devices have been tested and are compatible with third-party lighting fixtures.

Override Input
Override inputs are provided to allow an external contact closure to momentarily override the control system program and set each channel output to its preset override level. Levels can be adjusted and saved locally from the front panel or remotely via software.

DIN Rail Mounting
The DIN-2LEDPWM8 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-2LEDPWM8's front panel stays accessible while the connections are concealed.

Cresnet® Wired Communications
The DIN-2LEDPWM8 communicates with a Crestron® Control System using the Cresnet control network. A pair of Cresnet ports is provided on the DIN-2LEDPWM8, allowing for easy daisy-chaining of several DIN Rail Series automation control modules.
