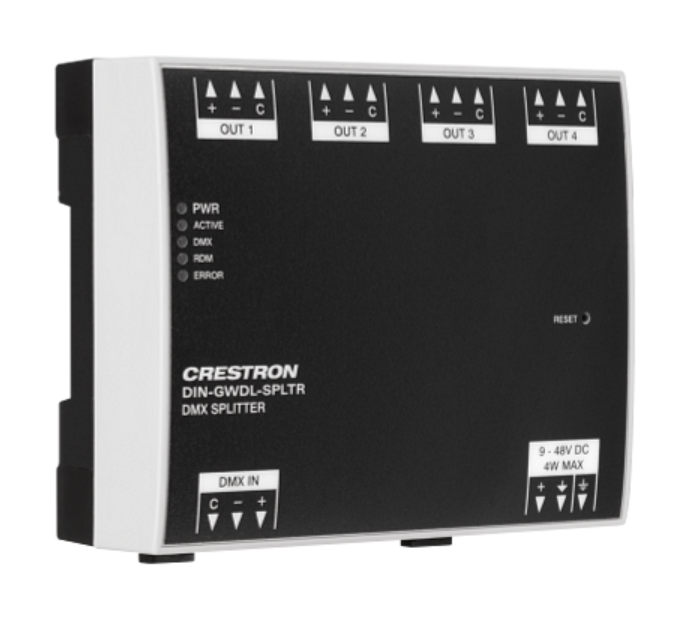

DIN-GWDL-SPLTR
Digital Lighting Splitter, 4 Channel, DIN Rail Mount
Description
Built on the DMX512 standard, DMX-C offers the speed and reliability of a traditional DMX system with the seamless and consistent user experience of the Crestron Home OS. When connected to a DIN‑GWDL, DMX-C lighting fixtures are auto-discovered, auto-addressed, and treated as native Crestron devices with a consistent and intuitive interface.
Supports up to 85 Crestron Light Fixtures and Crestron Compatible Third-Party Fixtures
The DIN‑GWDL has two DMX-C outputs, each of which supports up to 32 directly connected Crestron light fixtures and Crestron compatible third-party light fixtures, for a total of 64 directly connected fixtures. Each added DIN‑GWDL‑SPLTR adds four additional DMX-C outputs, each of which supports up to 32 directly connected Crestron light fixtures and Crestron compatible third-party light fixtures. The DIN‑GWDL with a DIN‑GWDL‑SPLTR can support a total of 85 Crestron light fixtures and Crestron compatible third-party light fixtures.
Fast Commissioning
Connect Crestron light fixtures and Crestron compatible third-party light fixtures quickly with the RJ-45 adapters. Verify the system immediately by testing lighting loads with local controls. Once connected to a Crestron Home processor through a DIN‑GWDL, DMX-C allows for lighting loads to be automatically addressed and discovered using the fixture identify tool.
NOTE: To order the DIN-GWDL-SPLTR as part of a configured system, use the Light Fixture Configuration Tool or call 1-888-273-7876 (option 3) for Sales Support Services and/or your Regional Sales Manager.
The DIN-GWDL-SPLTR expands the capability and flexibility of the DIN‑GWDL by providing four additional outputs for Crestron light fixtures and Crestron compatible third-party light fixtures.
Built on the DMX512 standard, DMX-C offers the speed and reliability of a traditional DMX system with the seamless and consistent user experience of the Crestron Home OS. When connected to a DIN‑GWDL, DMX-C lighting fixtures are auto-discovered, auto-addressed, and treated as native Crestron devices with a consistent and intuitive interface.
Supports up to 85 Crestron Light Fixtures and Crestron Compatible Third-Party Fixtures
The DIN‑GWDL has two DMX-C outputs, each of which supports up to 32 directly connected Crestron light fixtures and Crestron compatible third-party light fixtures, for a total of 64 directly connected fixtures. Each added DIN‑GWDL‑SPLTR adds four additional DMX-C outputs, each of which supports up to 32 directly connected Crestron light fixtures and Crestron compatible third-party light fixtures. The DIN‑GWDL with a DIN‑GWDL‑SPLTR can support a total of 85 Crestron light fixtures and Crestron compatible third-party light fixtures.
Fast Commissioning
Connect Crestron light fixtures and Crestron compatible third-party light fixtures quickly with the RJ-45 adapters. Verify the system immediately by testing lighting loads with local controls. Once connected to a Crestron Home processor through a DIN‑GWDL, DMX-C allows for lighting loads to be automatically addressed and discovered using the fixture identify tool.
Key Features
- Designed exclusively for Crestron Home® OS
- Provides 4 outputs, each supporting up to 32 directly connected Crestron light fixtures and Crestron compatible third-party light fixtures
- Expands the capability of the DIN-GWDL to support up to 85 Crestron light fixtures and Crestron compatible third-party light fixtures
- Expands wire run maximum 1000 ft (305 m) beyond the DIN-GWDL
- RJ-45 adapters included for quick wiring using standard CAT5 cable
- Order using the Crestron Light Fixture Configuration Tool
- 6U 35 mm DIN rail mountable
