GLXX-HDSW8
8 Channel Heavy Duty Switch Module
Green Light Express®
Up to 8 channels of heavy duty power switching
Modular design allows adding relays when needed
Green Light Express®
Up to 8 channels of heavy duty power switching
Modular design allows adding relays when needed
Description

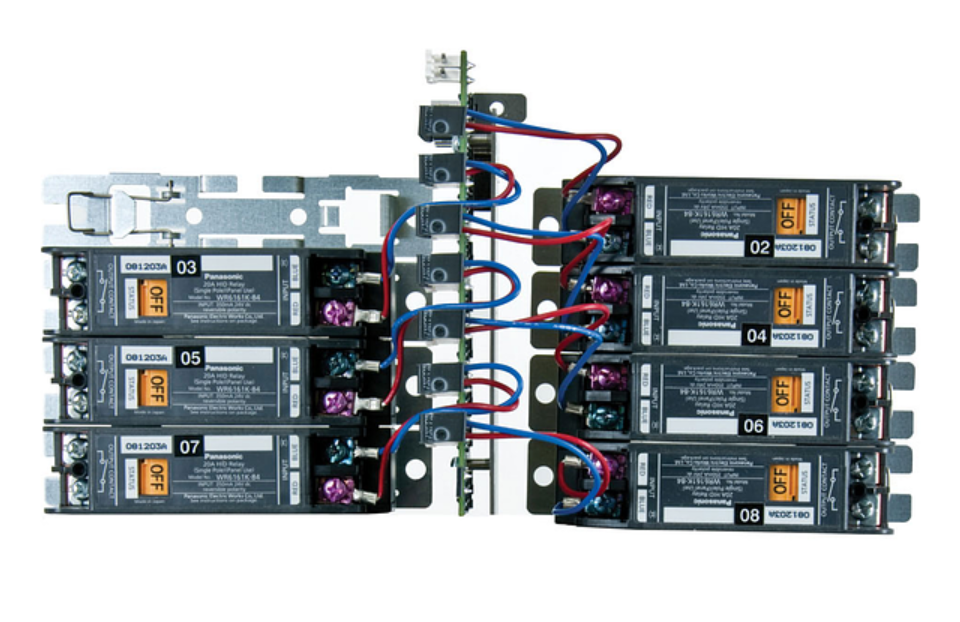

The GLXX-HDSW8 is a Crestron® Green Light Express® switching module chassis for up to 8 channels of heavy duty power switching. The chassis requires GLR-HD-1P (single pole) or GLR-HD-2P (double pole) heavy duty relays. The module is part of a complete Crestron engineered GLPX Green Light Express panel.
For more information on Crestron Green Light commercial lighting products, please contact Crestron This email address is being protected from spambots. You need JavaScript enabled to view it.
Key Features
- Up to 8 channels of heavy duty power switching
- Modular design allows adding relays when needed
- Supports up to 480 Volts and 2-pole motor loads
- 20 Amp, 1.5 HP load rating per channel
- Positive air gap at each output
- GLEX cabinet installation
