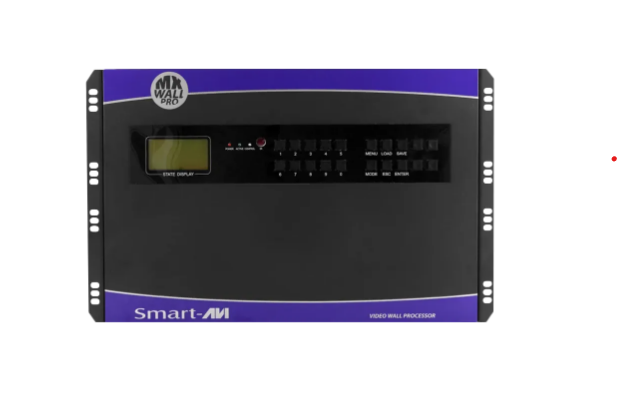

MXWall-Pro
Expandable HDMI video wall and matrix solution: Route 64 1080p HD sources to 64 displays with integrated scaler, storage, and creative picture modes.
Description
- Complete hardware solution
- Plug-and-play ready
- Expandable HDMI inputs and DVI outputs (up to 32×32)
- 1080p (1920×1080 @ 60Hz) Output Resolution
- Flexible video wall display configurations
- Reliable 24/7 Uninterrupted Use
- Easy control and access
- HDCP and HDMI 1.4 compliant
- User-Friendly MXWall Manager Software
| VIDEO | |
|---|---|
| Video Amplifier Bandwidth | 3.2G |
| Input Video Signal | Video (TMDS) 0.5~1.0Vpp |
| Input DDC Signal | 5 volts |
| Compliances | HDMI 1.4 and HDCP |
| Pixel Rates | Clock frequency beyond 165Mpix/second |
| Format | 4:4:4 and 4:2:2 data input formats |
| Resolution | 480p, 720p, 1080i, 1080p |
| Input Card Format | HDMI, DVI |
| Output Card Format | HDMI, DVI |
| Input Slots | Up to 8 cards (4 inputs each) |
| Output Slots | Up to 8 cards (4 outputs each) |
| Video Type | RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits |
| CONTROLS | |
| Front | State Display with push buttons |
| RS-232 | 9600bps, Software flow DB9 Female |
| TCP/IP | Webserver, Telnet |
| OTHER | |
| Working Temperature | 0°C~+55°C |
| Storage Humidity | 10%~90% |
| Weight | 30 lbs |
| Dimensions | 17.125 in (W) x 12 in (H) x 12 in (D) |
| Power Supply | 50/60Hz, 100~230 VAC |
| Consumption | 300W |
