ENC327

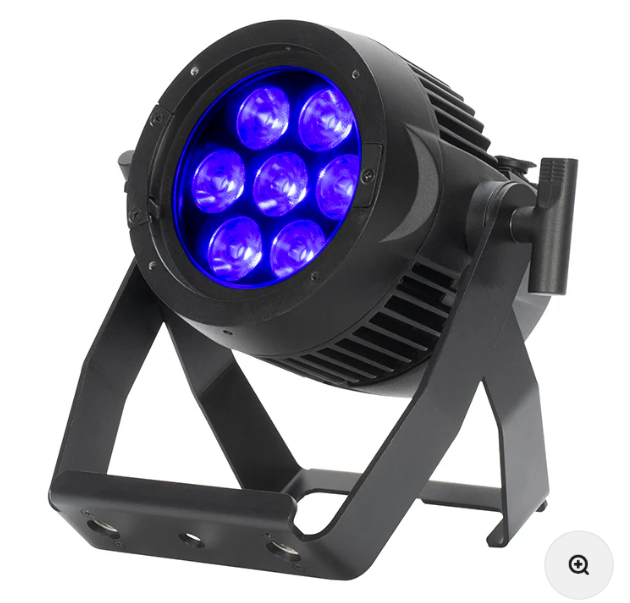

The ADJ Encore LP7IP is a versatile, heavy duty Par with seven (7) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10° beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white color temperature control from 2700K - 7000K. A removable 25-degree frost filter is included.
Description
Specifications
SOURCE:
• Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue amp; Lime)
• Rated Life: 50,000 hr.
PHOTMETRIC DATA:
• Beam angle: 10° (Includes 25° removable frost filter)
• CRI: 84
• CRI R9: 76.6
• Lumens: 2500
EFFECTS:
• Linear Color Temperature Control (2700K to 7000K)
• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
• 16-Bit Fine Color Control (Red, Green, Blue amp; Lime)
• 64 built-in Color Macros
CONTROL / CONNECTIONS:
• 4-button, DMX digital display on rear panel
• Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
• Supports RDM (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre amp; Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 6 DMX Modes: 4, 7, 8, 10, 13 amp; 16-channel
• Quiet fan mode
CONSTRUCTION:
• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All metal construction
• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
• Locking, outdoor IN/Out Power connectors
• Data linkable via 5-pin XLR DMX connections
• Scissor Yoke amp; safety eye
ELECTRICAL / THERMAL:
• Multi-voltage operation: AC 100-240V, 47/63Hz
• Daisy chain: 10 @ 120V, 20 @ 220V
• Max power: 103W
• Min/Max Ambient Temperature: -20ºC ~ 45ºC
DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 8.65” x 6.5” x 9.5” / 220x160x242mm
• Weight: 7.5 lbs. / 3.45 kg.
APPROVALS / RATINGS:
• cETLus (Control # 4010765)
• IP65
INCLUDED ACCESSORIES:
(1) 25° Frost Filter
(1) Power Cord
OPTIONAL ACCESSORIES:
ELP7L100: 100° frost filter for the Encore LP7IP
ELP7L60: 60° frost filter for the Encore LP7IP
ELP7L30X60: 30x60° frost filter for the Encore LP7IP
ELP7L1X40: 1x40° frost filter for the Encore LP7IP
ELP7L20: 20° frost filter for the Encore LP7IP
Z-8050000053: 107mm Omega Bracket
ELP7IPBDA: Barn Door / Gel Frame Kit
Specifications are subject to change without notice.
