D161-8

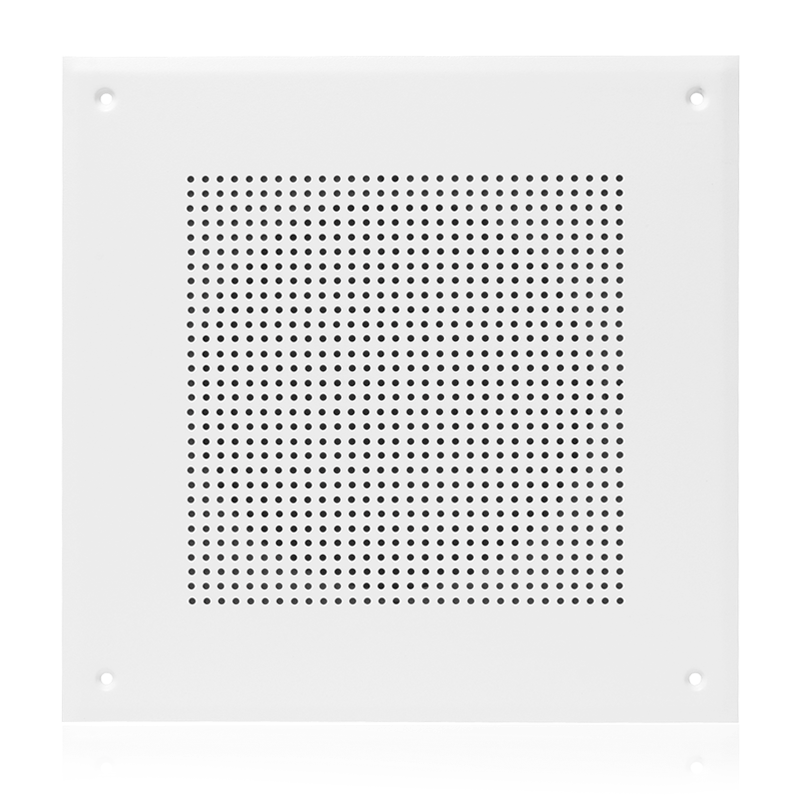

8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer with 161-8 Square Baffle
Description
DESCRIPTION
Convenient, labor saving assemblies are ideal for use wherever a general-purpose paging and music speaker is required. Quality components are factory wired and shipped complete with dual-cone speaker, dual-voltage transformer and round or square grille. D Series incorporates 8" model C10A with a 10-ounce ceramic magnet. Versatile 25V/70.7V transformer includes pre-wired secondary leads with color coded, stripped and tinned primary. Recessed grilles are offered in square versions with attractive white epoxy finish. To meet code requirements and facilitate installation in a wide variety of ceilings, AtlasIED offers an optional selection of recessed and surface mounting enclosures, mounting rings and tile bridge accessories.
Features
- Save Time and Money with Factory-Assembled Loudspeaker, Transformer and Baffle Packages
SPECIFICATIONS
| Frequency Response | 100Hz - 10kHz |
| Sensitivity | 97dB |
| Power Taps | .5, 1, 2, & 4 Watts |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Depth | 2 7/8" (7.3025 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 5.33 lbs (2.42 kgs) |
| Warranty Period | 60 months from date of purchase |
