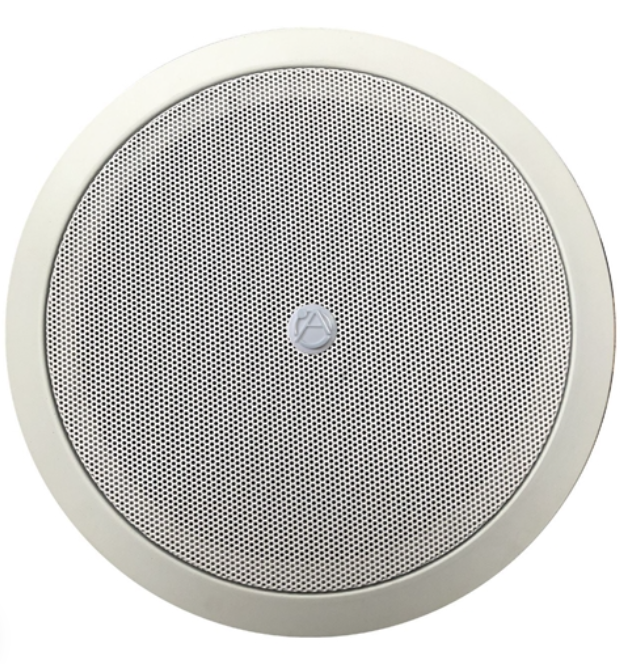

DLS6
The DLS6 provides excellent performance for paging and background music applications. High sensitivity provides maximum sound lebel, even at low tap settings.
The speaker is a 165mm (6.5") speaker with a high 95 dB sesitivity, great bass extension, and a 6-watt multi-tap transformer. The speakers' pre-attached dual voltage transformer provides versatility by allowing use on 100v or 70v distributed loudspeaker lines. The drivers feature a full 14mm (0.55") diameter voice coil with a better power dissipation and long-term reliability. For installation and convenience, the speaker grille and transforemer are pre-attached to the driver. Grilles are powder-coated steel. The backcan can be installed to the speaker and wired prior to installation.
- Affordably priced, high-quality dual-code ceiling speaker
- Pre-assembled speaker/transformer grille assembly
- Suitable for most paging or background music applications, including retail stores, restaurants, schools and other facilities
- Very high sensitivity providing maximum sound Ievels using minimal amplifier power
- Multi-tap transformer for 100V and 70V distributed speaker lines
- Easy blind-mount installation from below the ceiling with spring clamp
- Optional backcan for inhibiting fire, preventing dust, and limiting sound from the back of the speaker
| Frequency Range | 70Hz - 20kHz |
| Driver Type | 6.5" Full-Range Driver |
| Power Taps (100V) | 6W, 3W, 1.5W |
| Power Taps (70V) | 3W, 1.5W, 0.8W |
| Sensitivity (1W/1M) | 95dB |
| Impedance | 8 ohms |
| Coverage | 120° |
| Cut Out Diameter | 6.89" (175mm) |
| Dimensions | H x Diameter: 2.6" x 7.87" (66mm x 200mm) |
| Weight | 1.4 lbs (0.63kg) |
| Shipping Weight | 1.88 lbs (0.85kg) |
| Warranty Period | 60 months from date of purchase |
