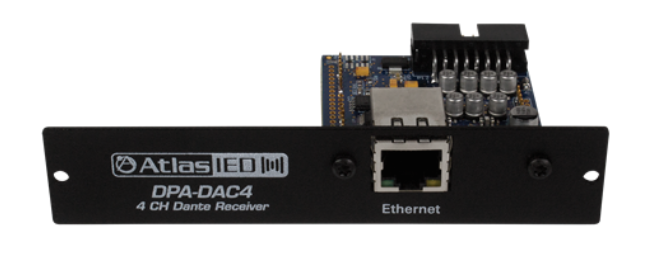

DPA-DAC4
Dante™ Accessory Card for DPA Series Amplifiers
Description
DESCRIPTION
The DPA-DAC4 accessory card is designed to work in conjunction with DPA Series amplifiers. The DPA-DAC4 is a 4-input Dante™ receiver that features digital audio transportation over standard IP networks. The DPA Series 4-channel amplifiers come standard with four balanced line inputs and an accessory card slot to add an additional 4-inputs, giving the amplifiers a total of 8-inputs.
All inputs can be mixed and routed to any of the four amplifier channels. All four amplifier channels have an assortment of DSP tools including level controls, EQ’s, limiters, high & low pass filters, and delay to provide flexibility for a range of applications.
Features
- Dante™ Network Audio Enabled
- 4-Channel Receiver
- Integrates with 4-Channel DPA Series Amplifiers
Case Studies
SPECIFICATIONS
| Connector Type | RJ-45 |
| Gain Controls | 0dBFS = 20dBu & 0dBFS = 10dBu PCB shunt selectable |
| Frequency Response | 20Hz - 20KHz +/- 1dB |
| THD | .06% @ 1KHz |
| Maximum Output Level | 7dBu |
| Height | 0.97" (2.46cm) |
| Width | 4.70" (11.94cm) |
| Depth | 2.5" (6.3cm) |
| Weight | 2.6oz (0.07kg) |
| Warranty Period | 12 months from date of purchase |
