DR-42
85° Uniform Coverage Horn
Description
DESCRIPTION

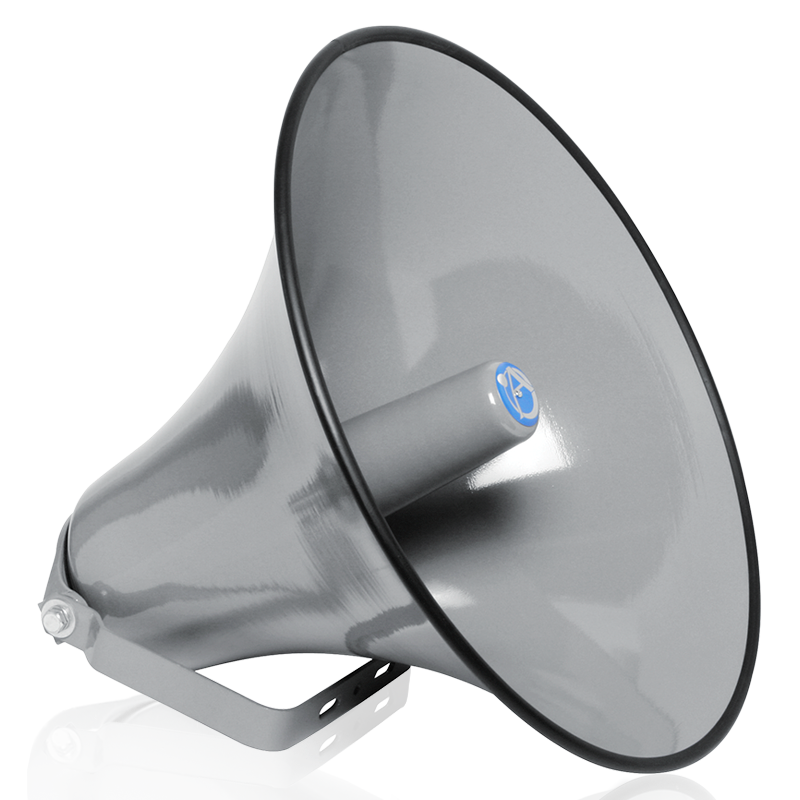

AtlasIED DR Series double re-entrant horns are designed for use with compression driver units to offer superior music and voice communications over distance and ambient noise. The circular projectors are equipped with a resonance damping ring for best response through an extended frequency range.
Weather-resistant units will accommodate AtlasIED PD and SD Series compression drivers or any driver with standard 1 3/8" -18 male thread coupling. The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments.
The rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.
Features
- Accepts All Standard High Efficiency Compression Drivers with 1 3/8" - 18 Male Threads
- Exponentially-Flared for Uniform Sound Distribution
- Multi-Purpose Reflex Sound Horns for High Intelligibility Sound Distribution and Voice and Signal Applications
- Weatherproof, All-Metal Construction for Year Round Use
SPECIFICATIONS
| Dispersion | 85° |
| Depth | 16" (40.64 cm) |
| Diameter | 21" (53.34 cm) |
| Shipping Weight | 13.00 lbs (5.90 kgs) |
| Warranty Period | 60 months from date of purchase |
