FA138T327
8" Coaxial Speaker with 32-Watt 70.7V Transformer
Description
DESCRIPTION

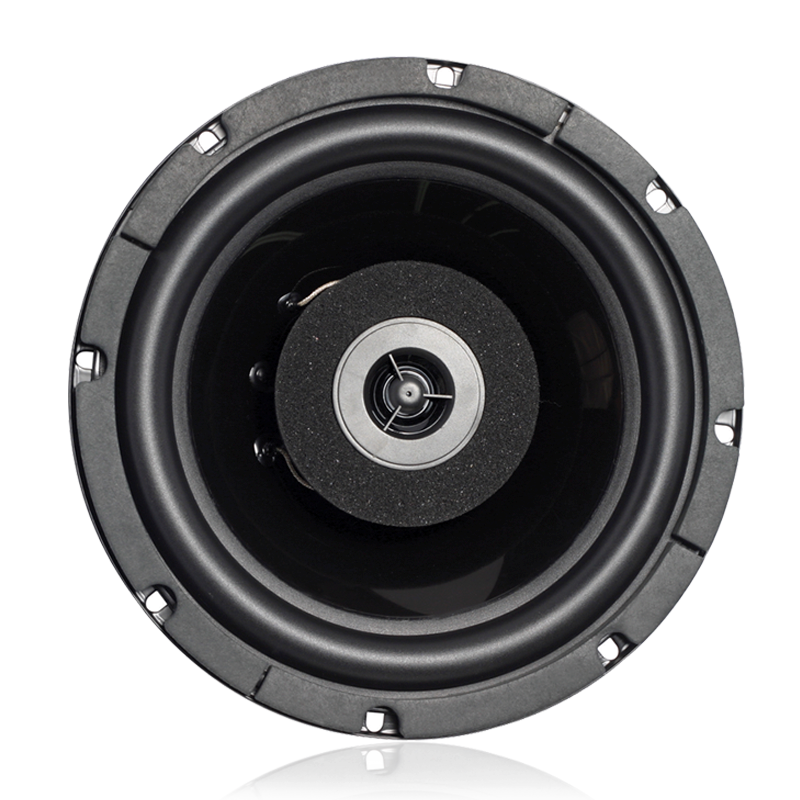

Model FA138 is AtlasIED's premium 8" coaxial speaker. This 32-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. It incorporates a tapered backplate for increased magnetic circuit efficiency and offers a frequency response of 75Hz - 20kHz. Model FA138 contains a Kevlar® fiber reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1-1/2" vented Kapton voice coil, a 21oz. magnet and a 1.2" mylar dome ferro fluid tweeter for clean and powerful weather-resistant performance.
Features
- 32-Watt, 8" Loudspeaker System Delivers Efficient Frequency Response
- Loudspeaker Conveniently Front Loads into Acoustically-Matched Enclosure, Plaster or Trim Ring
- Patented System Design Provides Easy Installation
- Performance Sensitivity Offers Enhanced Audio Clarity
- Optional System Components (not included): Transformers, Acoustic Enclosures, Tile Bridge, Plaster Ring, Trim Ring and Hardware-Free Grilles
SPECIFICATIONS
| Speaker Type | Coaxial |
| Sensitivity | 89.5dB Average, 93dB Peak |
| Frequency Response | 75Hz - 20kHz |
| Power Taps | 8, 16, & 32 Watts |
| Dispersion | 110° |
| Depth | 5 1/2" (13.97 cm) |
| Diameter | 8 1/4" (20.955 cm) |
| Shipping Weight | 8.00 lbs (3.63 kgs) |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
