FD70W
8" In-Ceiling Speaker with 5-Watt 70V Transformer and 62-8 Baffle
Description
DESCRIPTION

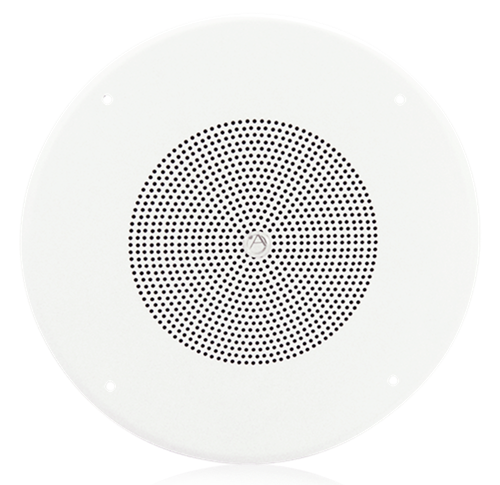

Model FD70W is a cost effective assembly that include high-quality 8" speaker, 70.7V transformer and screw type grill. Unit is shipped assembled, ready for installation.
The FD70W features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.
Speaker / transformer is factory installed on a 62-8 style baffle.
Features
- Attractive White Finish
- Easy to Order Speaker/Transformer/Grill Assembly
- Mounts to Standard Tile Bridges, Enclosures, and Plaster Rings
- Suited for Any Commercial Paging or BGM Application
SPECIFICATIONS
| Speaker Type | Treated Paper |
| Sensitivity | 97dB Peak, 94dB Average |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .5, 1, 2, & 5 Watts |
| Dispersion | 105° |
| Depth | 2 5/8" (6.6675 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 3.67 lbs (1.66 kgs) |
| Warranty Period | 60 months from date of purchase |
