G161-8
8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 161-8 Square Baffle
Description
DESCRIPTION

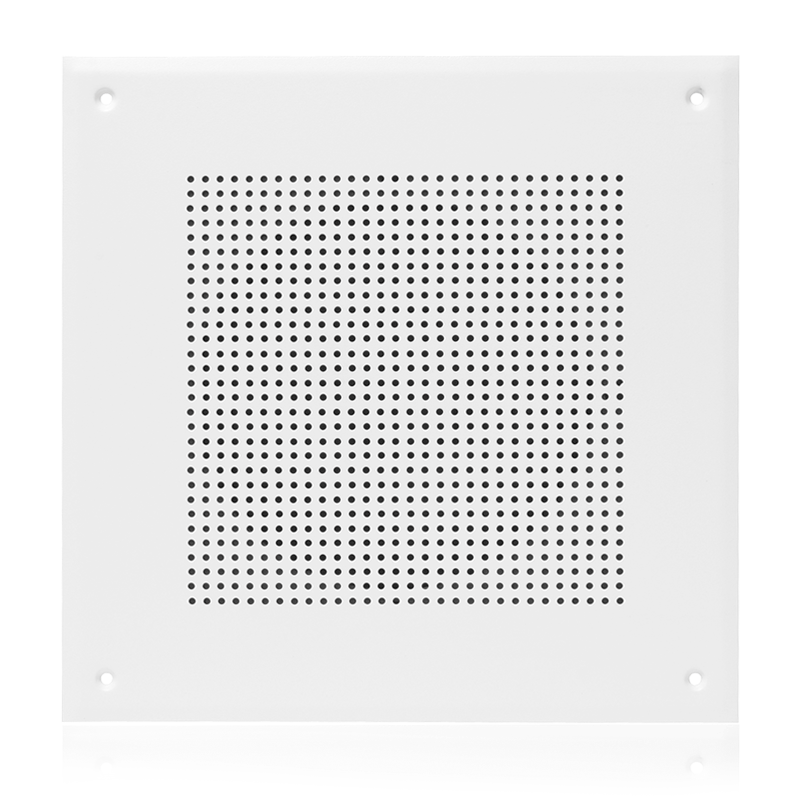

Convenient, labor saving assemblies are ideal for use wherever a general-purpose paging and music speaker is required. Quality components are factory wired and shipped complete with dual-cone speaker, dual-voltage transformer and round or square grille.Quality speaker package for ceiling or wall installation include speaker with 5 oz. magnet and dual-voltage transformer. Included grille is square with attractive white epoxy finish. To meet code requirements and facilitate installation in a wide variety of ceilings, AtlasIED offers an optional selection of recessed and surface mounting enclosures, mounting rings and tile bridge accessories.
Features
- 161-8 Grill Mounts to Several Recessed and Surface Mount Enclosures
- 4 Watt, Dual Voltage 25/70 Volt Transformer
- 8" Speaker with Wizzer Cone and 5oz. Magnet
- Factory-Assembled Loudspeaker Packages Reduce Installation Time and Expense
- Packaged in Individual Boxes that Include Both Hardware Bag and Installation Instructions
- Standard Bolt Hole Pattern Matches a Variety of Plaster Rings, Tile Bridges, & Enclosures
- Tap Selection Codes on Transformer Make Installation Easy
- True Suspension Speaker Needs No Enclosure to Sound Great
SPECIFICATIONS
| Frequency Response | 100Hz - 10kHz |
| Sensitivity | 96dB |
| Power Taps | .5, 1, 2, & 4 Watts |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Depth | 2 5/8" (6.6675 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 4.67 lbs (2.12 kgs) |
| Warranty Period | 60 months from date of purchase |
