GD87A
8" Coaxial 16 Watt Speaker
Description
DESCRIPTION

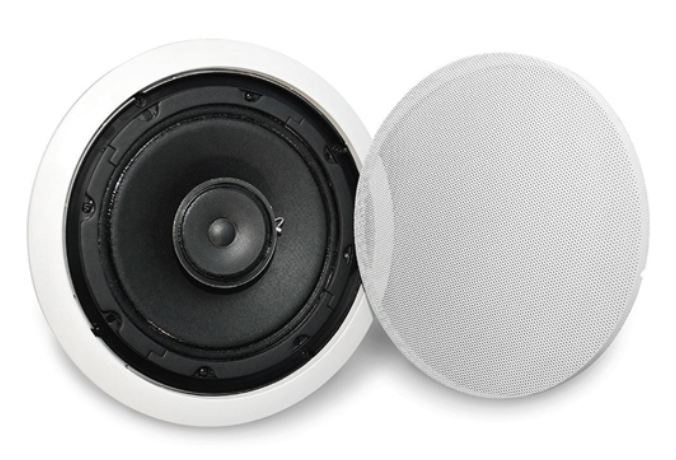

The speaker used in the GD87A package is the next generation of Atlas high performance coaxial 8" cone loudspeakers, very similar to the C803A Series speakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the C803A Series in the past will know exactly what to expect when they purchase the GD87A.
The easy to use GD87A "dog leg" mounting system works with several popular Atlas Sound hardware combinations for use in new or existing drywall or acoustic ceilings.
Features
- Industry Standard 8" (203mm) Coaxial, 8 Watt, Loudspeaker
- Offers Proven Performance with Wide Frequency Response
- Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
- Attractive Weld Stud Baffle
- Quality 8 Watt 70.0V Transformer
- Safety Listed to UL 1480 & UL 2043
SPECIFICATIONS
| Speaker Type | 8" Coaxial |
| Magnet Weight | 10oz (283g) |
| Frequency Response | 55Hz - 15kHz (±7dB) |
| Peak Sensitivity (1W / 1M) | 98dB |
| Average Sensitivity (1W / 1M) | 96dB |
| Power Handling | 16 Watts RMS |
| Transformer | 70.7V |
| Transformer Taps | 1, 2, 4, & 8 Watts |
| Baffle | Included |
| Finish | White |
| Mounting Depth | 3.45" (87.63mm) |
| Bezel Diameter | 10.710" (272mm) |
| Cut Out Diameter | 9.437" (239.7mm) |
| Warranty Period | 60 months from date of purchase |
