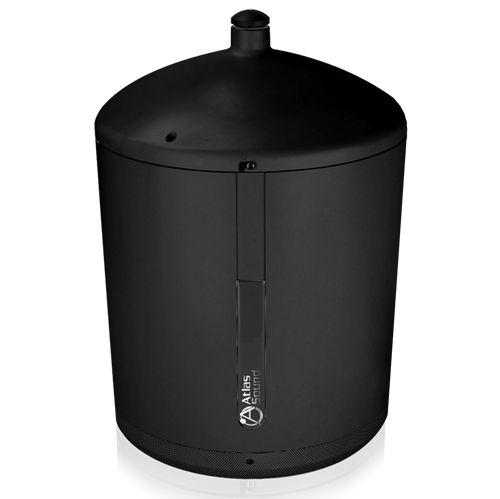

IP-PM8GD-B
8” Pendent Mount PoE+ IP Speaker System - Black
Description
Features
-
Network Features
-
8" Coaxial, High-Efficiency Coaxial Speaker
- Dynamic or Static IP Address
- IEEE802.3 10/100Base-T Ethernet
- IEEE 802.1q Tagging
- IEEE 802.11AT Compliant
-
VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
-
Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or IEDNet+ for AtlasIED Applications
-
Audio Features
- Static Registration: HTTP GUI for Static Configuration
- Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
- 3 Meters of 2mm Cable & Mounting Hardware Included
- Compatible with Standard 3/4" Ceiling Fan Hardware
SPECIFICATIONS
| Connector Type | RJ-45 |
| Speaker Type | Coaxial (Treated Paper) |
| Speaker Output | 9-Watts (802.3AF), 15-Watts (802.3AT) |
| Amplifier Power | 15-Watts Max (802.3AT) |
| Sensitivity | 106dB Continuous |
| Frequency Response | 86Hz - 15.5kHz |
| THD | <.02% |
| Dispersion | 105° (800Hz - 4kHz) |
| Safety Listed | Safety Listed to UL 62368 |
| Height | 16.62" (422mm) |
| Width | 12.25" (311mm) |
| Weight | 12.5 lbs (5.67kg) |
| Shipping Weight | 15.5 lbs (7.03kg) |
| Warranty Period | 60 months from date of purchase |
