PD-30
30-Watt 8Ω Compression Driver for Large Format Horn Speakers
Description
DESCRIPTION

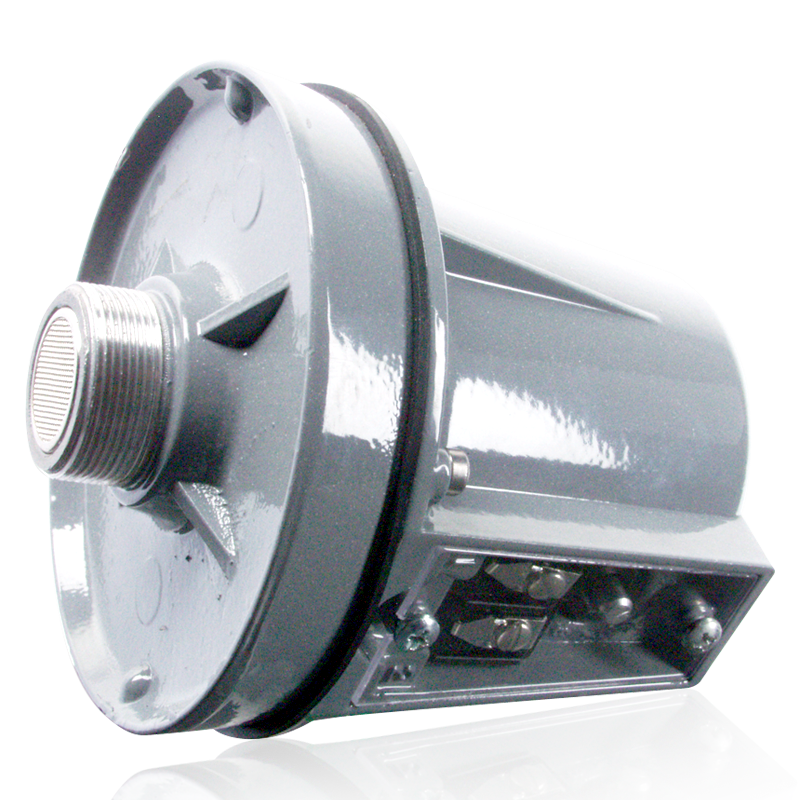

Model PD-30 is fully environment-resistant for indoor or outdoor application and recommended for use in expansive and/or high-ambient sound-level areas. Unit has a power rating of 30 watts, a 1.5" voice coil and a plane wave frequency response of 300Hz - 3.9kHz.
Model PD-30 has a nominal impedance of 8 ohms.
Model PD-30 is terminated in standard 1 3/8"-18" thread male couplings for use with screw-on horns, or with AtlasIED Model DA-FH adapter for bolt-on type horns.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
Features
- 30-Watt Power Rating
- Environment-Resistant Construction for Indoor/Outdoor Use
- Extended Frequency Response Range for Optimum Intelligibility
- Outstanding Sound Reproduction and Power-Handling For Signaling, Music and Public Address Systems
SPECIFICATIONS
| Frequency Response | 300Hz - 3.9kHz |
| Sensitivity | 113.6 (avg) 300 - 3,900Hz |
| Power Rating | 30W |
| Depth | 4 1/2" (11.43 cm) |
| Shipping Weight | 4.00 lbs (1.81 kgs) |
| Warranty Period | 60 months from date of purchase |
