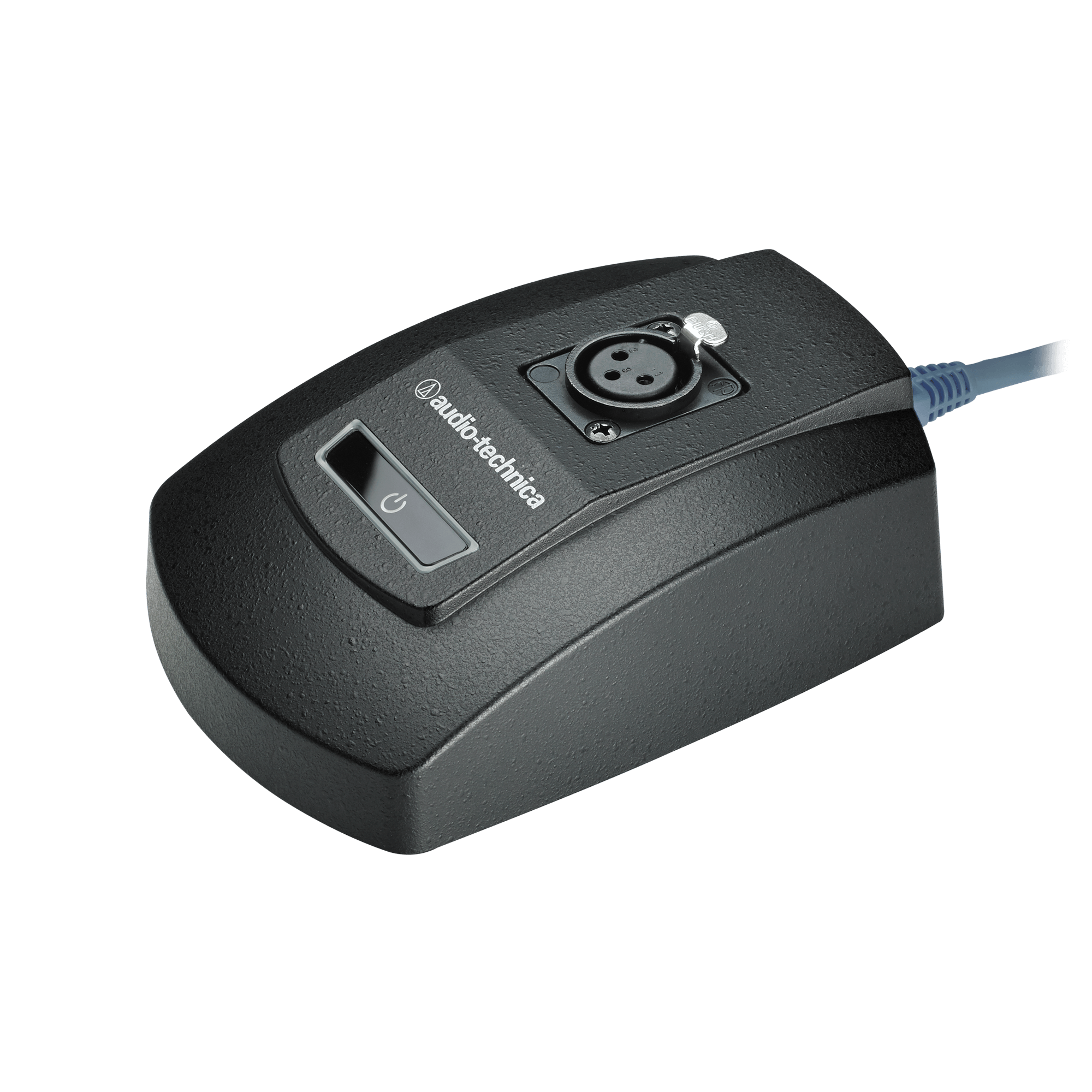

ATND8677a
Microphone Desk Stand with Dante™ Network Output
Description
| Microphones | |
|---|---|
| Frequency Response | 20-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Maximum Input Sound Level | -10 dBu @ +30 dB gain -20 dBu @ +40 dB gain -30 dBu @ +50 dB gain |
| Signal-to-Noise Ratio | 68 dB, 1 kHz at 1 Pa |
| Power Requirements | PoE IEEE802.3af standard (Power consumption 1.5W) |
| Phantom Power Requirements | 12V DC |
| Switches | Local Mode: Touch-sensitive capacitive-type user switch function: toggle (mute on power up), toggle (talk on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: +30 dB, +40 dB, +50 dB; Phant |
| Switches | Local Mode: Touch-sensitive capacitive-type user switch function: toggle (mute on power up), toggle (talk on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: +30 dB, +40 dB, +50 dB; Phantom power: 12V DC, off Remote Mode: Low-cut and Gain via third-party software* |
| Weight (Microphone) | 770 g (27.2 oz) |
| Weight | 770g |
| Dimensions | 133.0 mm (5.24") maximum length, 93.8 mm (3.69") maximum width, 46.2 mm (1.82") maximum height |
| Output Connector | Physical level: standard Ethernet Input Connector: 3-pin XLRF-type |
| Notes | Dante Network Specifications Connector: single RJ45 Cable quality: Shielded CAT5 or CAT6 recommended Transmission speed: 100 Mbps |
