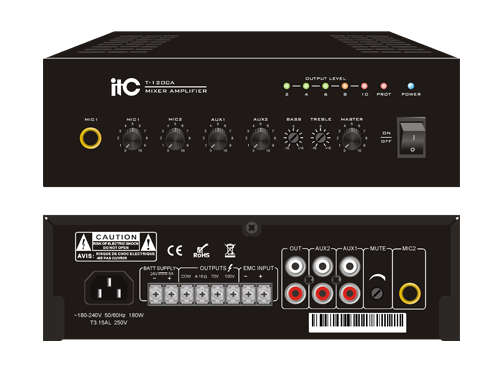

T-120CA
Mini Digital Class-D Mixer Amplifier
Description
Specification:
|
Rated Power Output |
120W |
|
Speaker Output |
70V, 100V & 4~16Ω |
|
Input Sensitivity & Impedance |
MIC1, 2: 5mV/600Ω, unbalanced TRS terminal |
|
AUX 1, 2: 350mV/10KΩ, unbalanced RCA terminal |
|
|
EMC: 775mV/10KΩ, unbalanced DG7.62 terminal |
|
|
Output Sensitivity & Impedance |
OUT: 1000mV/470Ω, unbalanced RCA terminal |
|
Tone |
Bass: ±10dB at 100Hz |
|
Treble: ±10dB at 10kHz |
|
|
Frequency Response |
50Hz~16kHz(+1dB, -3dB) |
|
SNR |
MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB |
|
THD |
0.5% at 1KHz, 1/3 output power |
|
Mute Function |
MIC 1 takes priority over other channels |
|
0-30 dB adjustable |
|
|
Channel Crosstalk Attenuation |
≤50dB |
|
Heat Dissipation |
Natural heat dissipation |
|
Protection |
High temp, overload & short-circuit |
|
Power Supply |
~220V 50Hz |
|
Power Consumption |
180W |
|
Weight |
4.65kg |
|
Dimensions |
215×275×66mm
|
