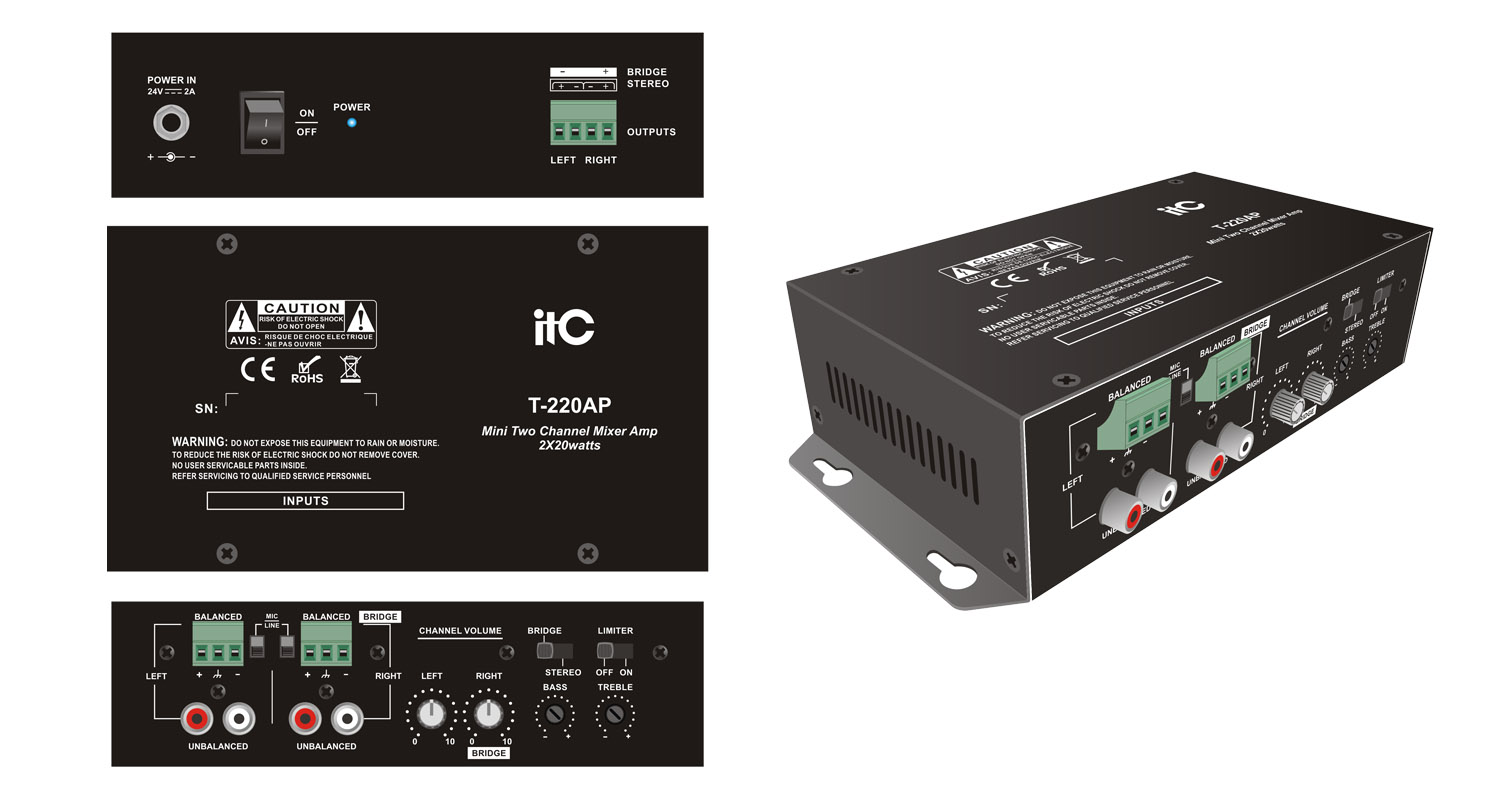

T-220AP
2 x 20W Mini Stereo Class-D Amplifier (Balanced inputs + Bridge mode)
Description
Specifications:
|
Model |
T-220AP |
|
Rated Power Output |
2 x 20W (THD10% @ 4Ω1KHz) |
|
Speaker Outputs |
4Ω or 8Ω |
|
Input
|
2 AUX inputs by RCA and 2 MIC/Line inputs |
|
by phoenix connectors |
|
|
LINE |
350mV/10KΩ |
|
MIC Input |
5mV/600Ω |
|
Frequency Response |
50Hz~18KHz (±2dB) |
|
S/N Ratio(line) |
Better than 85dB |
|
THD |
Less than 0.5% at 1KHz, 1/3 rated power |
|
Efficiency |
85% |
|
Controls |
Power switch, volume control |
|
Indicators |
Power |
|
Protection |
AC fuse, clipping, high temp & short-circuit |
|
Power Supply |
DC 24V |
|
Dimensions |
230 x 115 x 57mm |
|
Finish |
Panel: steel, black |
|
Case: SPCC Panel |
