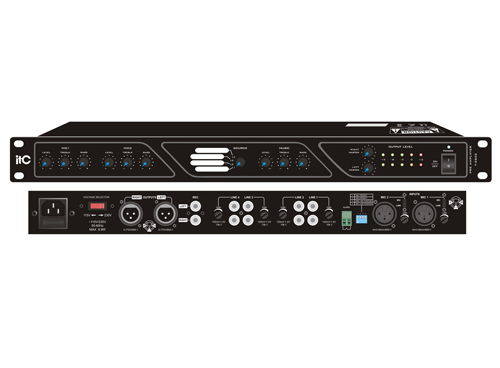

T-2S02
Stereo Mixer Pre-amplifier
Description
Specifications:
|
Model |
T-2S02 |
|
Input |
MIC 1-2: 4 mV -45 mV /600Ω, balanced |
|
MIC 1-2(LINE): 150mV-1.5V/10KΩ, balanced |
|
|
LINE 1, 2, 3, 4: 250 mV -2.5V/10KΩ, unbalanced |
|
|
Output |
1V/600Ω |
|
Frequency Response |
20Hz~20KHz (±1dB) |
|
S/N Ratio |
Mic input: 65dB; Line input: 85dB |
|
Tone |
Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz |
|
Phantom Power |
+48V |
|
Protection |
AC fuse |
|
Power Supply |
~110V -230V 50/60Hz |
|
Dimensions |
484 x 210 x 44mm |
|
Weight |
3.64Kg
|
