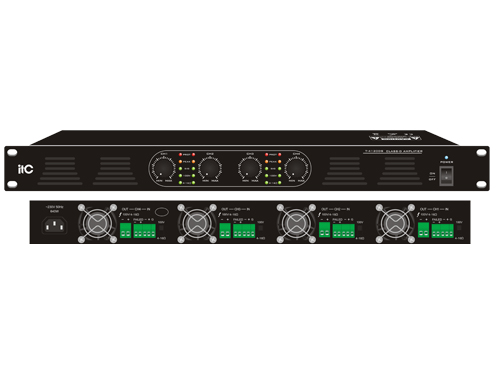

T-4350DS
4-Channel Class-D Amplifier
Description
Specifications:
|
Model |
T-4120DS |
T-4240DS |
T-4350DS |
T-4500DS |
|||
|
Rated Power Output |
4×120W |
4×240W |
4×350W |
4×500W |
|||
|
Rated Output |
100V/4-16Ω |
||||||
|
Input Sensitivity |
±385mV/20KΩ,Balance input |
||||||
|
(impedance) |
|||||||
|
Overload Source Electromotive Force |
>11dB |
||||||
|
Frequency Response |
80Hz~16KHz (+1, -3dB) |
||||||
|
Signal-to-noise Ratio |
≥85dB |
||||||
|
THD |
≤0.1% at 1KHz, 1/3 Rated power |
||||||
|
Control |
Remote power control and fault indication |
||||||
|
Indicator Light |
Signal, peak, protection, power |
||||||
|
Protection |
Overheat, overload, short circuit |
||||||
|
Cooling |
Fan forced cooling |
||||||
|
Power Supply |
230V/50Hz |
||||||
|
Power Consumption |
750W |
1250W |
1750W |
2250W |
|||
|
Dimension |
484×315×44mm |
||||||
|
Weight |
5.9Kg |
6.0Kg |
6.2Kg |
6.3Kg
|
|||
