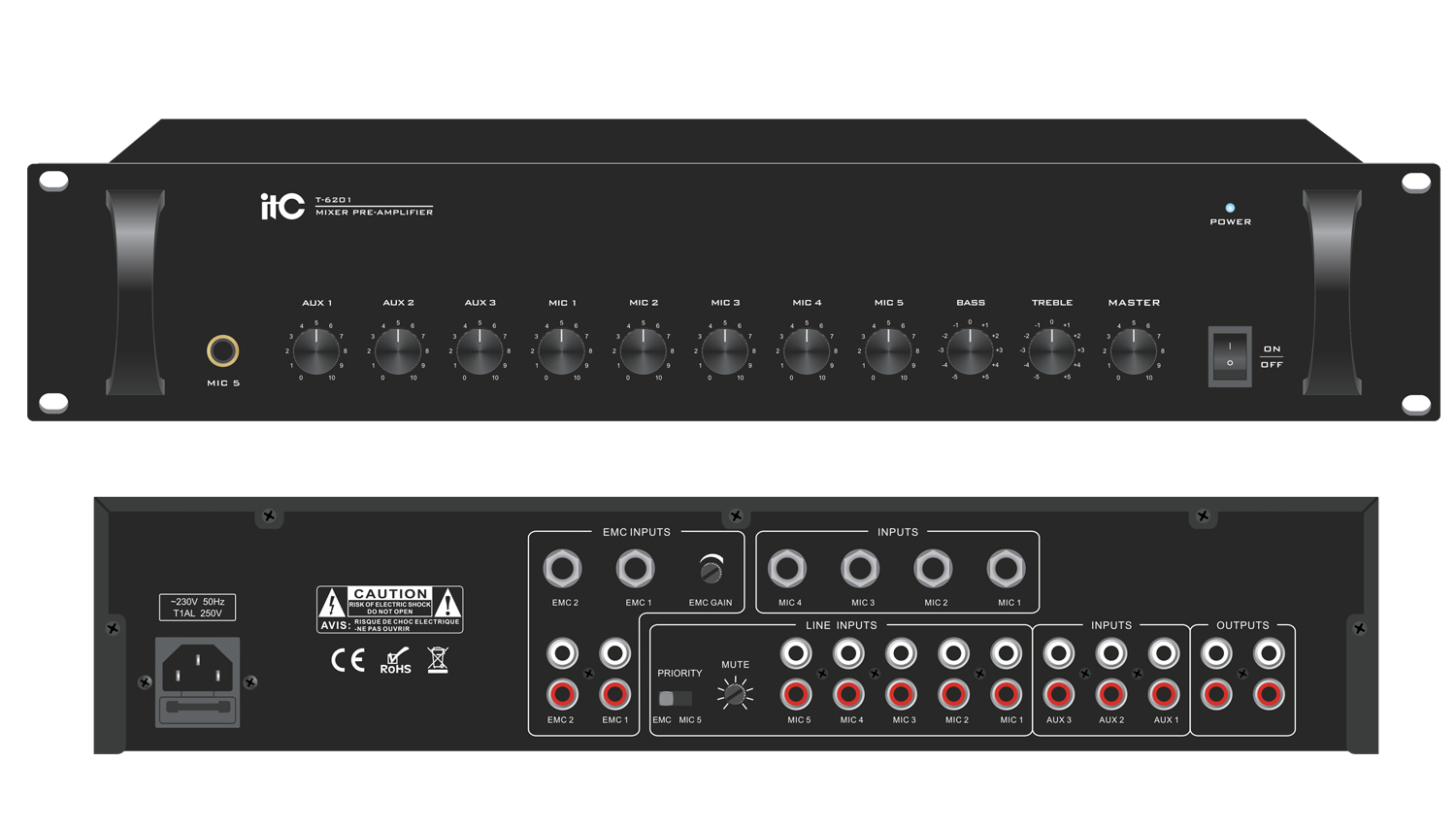

T-6201
Pre-Amplifier
Description
Specification：
|
Model |
T-6201 |
|
Input Sensitivity of Microphones 1-5 |
Microphone: 5mV/600unbalanced; Line RCA: 775mV/10K unbalanced |
|
Auxiliary 1-3 Inputs |
AUX 1.2. 3: 3500mV/10K non-equilibrium |
|
EMC1-2 Input |
RAC: unbalanced 200mV ~ 1000mV/10K |
|
MIC: unbalanced 5mV ~ 25mV/600 |
|
|
Frequency response |
20Hz-20KHz (± 3 dB) |
|
Signal-to-noise ratio |
50dB MIC input; 80dB AUX input |
|
Tone adjustment |
Bass: ± 10 dB at 100Hz; ± 10 dB at 10kHz treble |
|
Power supply |
~ 220V 50Hz |
|
Power Supply Dissipation |
20W |
|
Dimensions |
484 × 303 × 88 mm |
|
Weight |
4.54 kg
|
