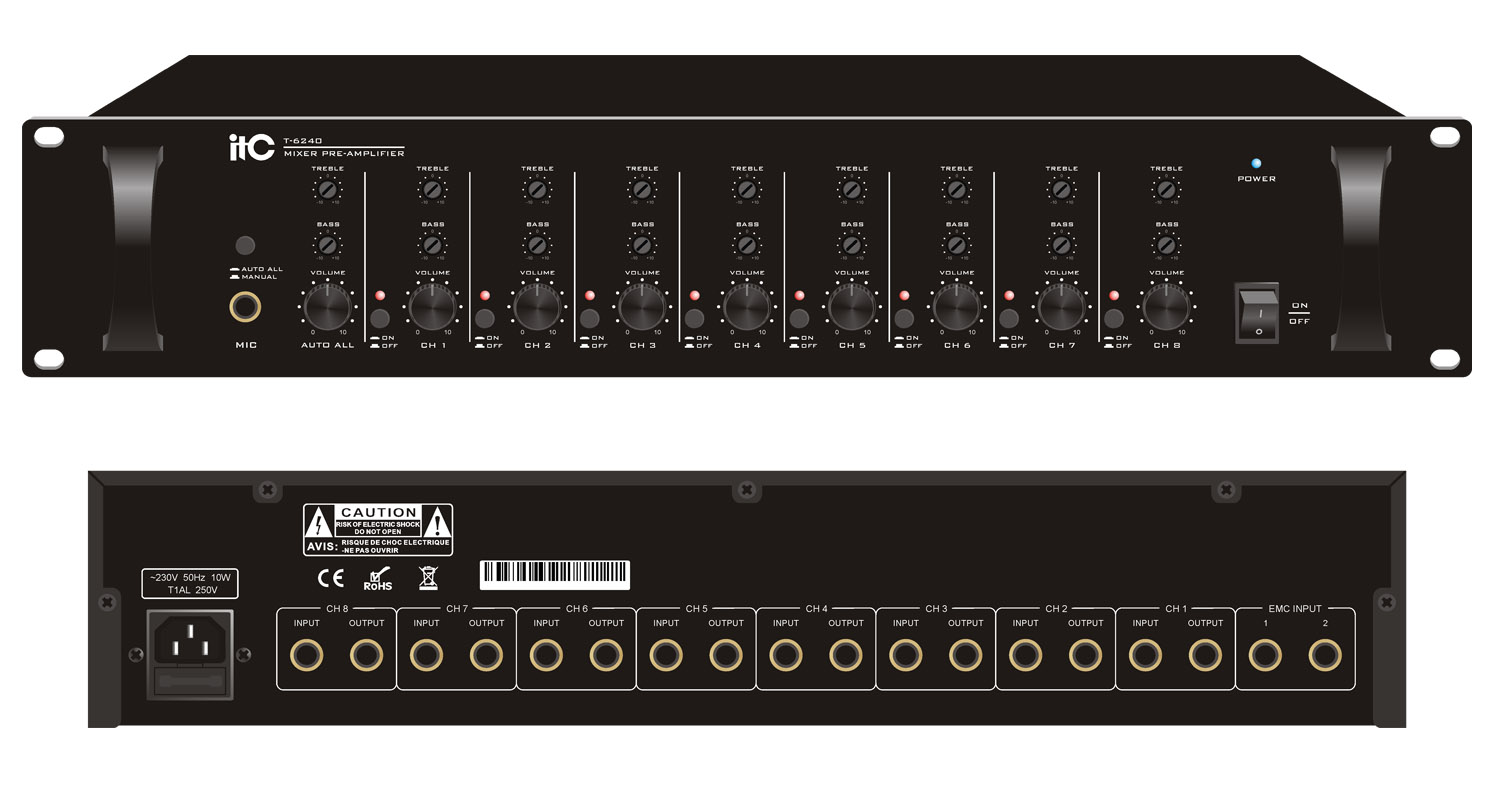

T-6240
8 Channel Pre-Amplifier (Each Input Has Treble and Bass Control)
Description
Specifications:
|
Model |
T-6240 |
|
Input |
MIC: 5mV/600Ω, unbalanced line/Mic inputs |
|
CH1-CH8: 350mV/10KΩ, unbalanced line/Mic inputs |
|
|
EMC: 775mV/10KΩ, unbalanced line/Mic inputs |
|
|
Output |
1V, 600Ω |
|
Frequency Response |
Line/EMC frequency response: 20Hz~20KHz (±2dB) |
|
Mic frequency response: 50Hz~16KHz (±2dB) |
|
|
S/N Ratio |
MIC: 66dB, LINE: 80dB |
|
THD |
0.01% |
|
Crosstalk |
MIC: 80dB, LINE: 85dB |
|
Muting function |
MIC has Muting function on EMC1-2;EMC has Muting function, |
|
automatically on CH1-CH8 |
|
|
Controls |
LINE, MIC separate volume control, treble and bass |
|
adjustment, channel selectors, and power switch |
|
|
Indicators |
Power LED, MIC channel LED |
|
Power Supply |
~110V-230V 50/60Hz |
|
Power Consumption |
35W |
|
Weight |
4.44Kg |
|
Dimensions |
484 x 335 x 88mm
|
