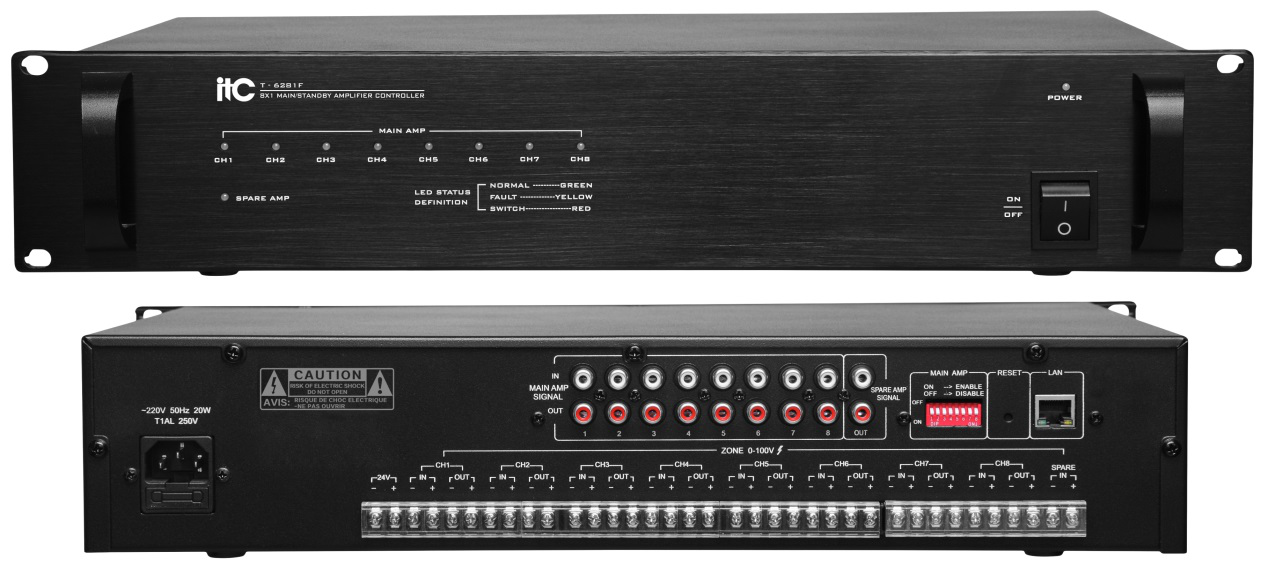

T-6281P
Amplifier Switchover (support 8 main amplifiers / 1 standby amplifier)
Description
Specification:
|
Model |
T-6281P |
|
AC supply voltage |
AC 220V±10% 50-60Hz |
|
AC supply maximum current |
<0.5A |
|
Fuse specification |
250V/1A, slow speed |
|
AC power consumption |
12W |
|
DC supply voltage |
24V DC, ±20% |
|
Maximum dc supply current |
0.5 A |
|
Line input sensitivity |
775mV |
|
Line input impedance |
10KΩ |
|
Line output amplitude |
775mV |
|
Line output impedance |
470Ω |
|
THD |
＜0.1% （rated output power）,1KHz |
|
Frequency response |
20-16KHz |
|
SNR |
>70dB |
|
Number of controllable switching channels |
8 |
|
Channel switching capability |
100V 20A |
|
amplifier switching time |
＜0.2S |
|
Cooling way |
Natural cooling |
|
Operating temperature |
+ 5℃ ～+ 4 0℃ |
|
Storage temperature |
- 20℃ ～+ 70℃ |
|
Relative humidity |
< 9 5 %（no condensation） |
|
Size |
484×345×88mm |
|
Weight |
5.3kg
|
