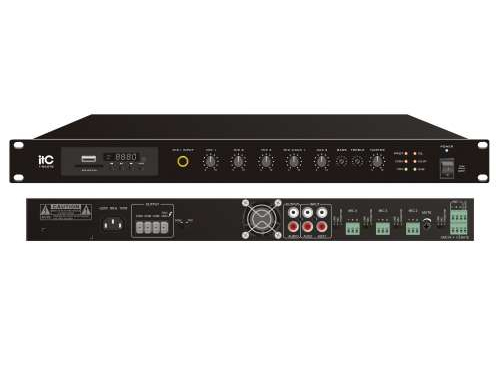

TI-B60DTB
Mixer Amplifier with MP3/TUNER/Bluetooth(Phoenix Mic Input)
Description
Specification：
| Model | TI-B60DTB |
| Output | 70V, 100V |
| RMS Power | 60W |
|
Input Sensitivity And Impedance |
MIC1, 2, 3, 4 input:5mV/600Ω, balanced 6.3 connector |
| AUX1、2 input:350mV/10KΩ, Unbalanced RCA connector | |
| EMC input:775mV/10KΩ, Unbalanced 6.3 connector | |
| Output Sensitivity & Source Impedance | MIX OUT:1000mV/470Ω, Unbalanced RCA connector |
| Tone | Bass: ±10dB at 100Hz |
| Treble: ±10dB at 10KHz | |
| Frequency esponse | 50~16KHz(+1dB,-3dB) |
| SNR | MIC1, 2, 3:66dB; AUX1, 2:80dB |
| THD | Less than 0.5%( at 1KHz, 1/3 rated power) |
| Phantom Power | 48V (±2V) |
| Mute Control | MIC 1 priority over MIC2-4, AUX1-2 audio input, |
| EMC has highest priority | |
| Channel Crosstalk Attenuation | ≥50dB |
| Heat Dissipation | Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed |
| Protection | Over-heat, overload, short circuit, etc |
| Power Supply | ~220-240V /50Hz OR ~110-120V /60Hz |
| Power Consumption | 100W |
| Dimension | 484×260×44mm |
| Weight | 4.3Kg |
