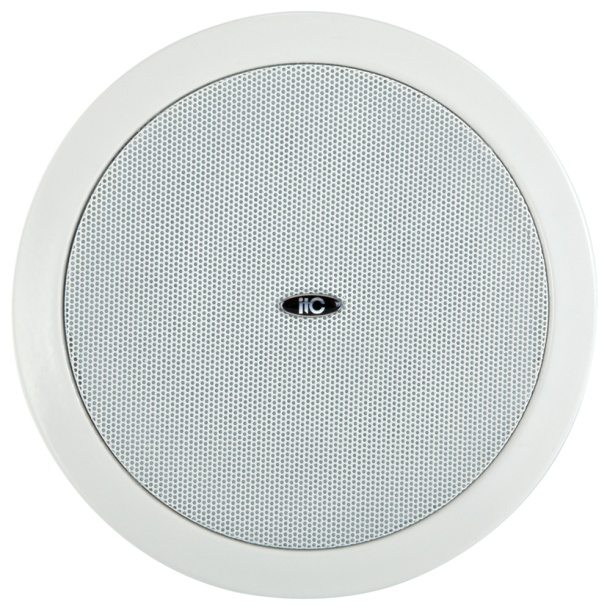

VA-105A
Ceiling Speaker
Description
Specification:
|
Model |
VA-105A |
|
Rated Power(100V) |
1.5W, 3W, 6W |
|
Rated Power(70V) |
0.75W, 1.5W, 3W |
|
Impedance |
Com: Red: 6.7KΩ/Green: 3.3KΩ/White: 1.7KΩ |
|
Sensitivity(1W/1M) |
94dB |
|
Maximum Sensitivity(W/1M) |
102dB |
|
Frequency Response(-10dB) |
110-18KHz |
|
Speaker Unit |
5" x 1 1.5" x 1 |
|
Cutout Size |
170mm |
|
Dimension |
200 x 65mm |
|
Weight |
0.8Kg
|
