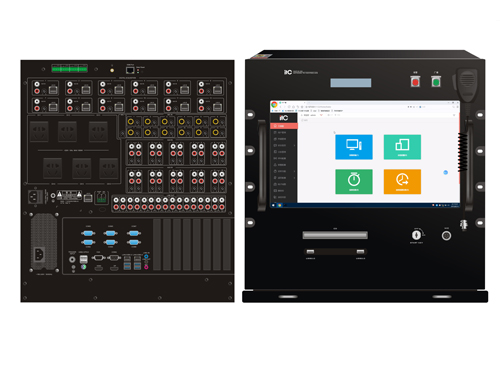

MCP-8100

Screen size

17.3 inches

Screen color

TFT256 color, true color

Control method

1920 x 1080 resolution LCD ten-point capacitive touch

Working environment

Ambient temperature: 0℃～60℃, humidity: 20%～80% relative humidity, no condensation

Standard interface

1 x MS interface; 8x serial port; 1 x VGA; 1xHDMI; 1xDVI; 8xUSB; 1xLINE IN；1xLINE OUT；1xMIC IN

Hard disk

256G SSD solid state drive

RAM

Dual-channel 2*4G DDR3 (capacity will continue to increase due to continuous product upgrades)

Network card

Dual Gigabit network interface

CPU

Intel Core i5-6400 @ 2.70GHz Quad Core

System audio signal SNR

LINE: 70dB; MIC: 60dB

System audio signal distortion

1kHz<0.5%

System audio signal standard input level

AUXIN: 300mV; MIC: 5mV

System audio signal standard output level

0dBV

Input power

~220V 50Hz

Software operating platform

Windows Server 2008 R2

Terminal support protocol

TCP/IP, UDP

Terminal audio format

MP3, PCM

Terminal sampling rate

8kHz~48kHz

Terminal transmission rate

100Mbps

Terminal audio transmission quality

16-bit CD quality

Terminal AUX IN input LINE OUT frequency

80Hz~16kHz +1/-3dB

Terminal output power

Built-in 6W; External 20W

Terminal output frequency

80Hz~16kHz +1/-3dB

Terminal MIC input LINE OUT frequency

200Hz~10kHz +1/-3dB

Terminal LINE OUT THD

≤0.01%

Terminal MIC input LINE OUT THD

≤0.03%

Terminal THD

≤1%

Terminal SNR

>68dB

Terminal LINE OUT output

1000mV RCA socket

Terminal AUXIN input sensitivity

350mV (unbalanced) RCA socket

Terminal MIC input sensitivity

5mV single-ended 6.35 socket

Terminal intelligent input power supply

~190V-240V 50Hz-60Hz

Terminal intelligent power output

~190V-240V Single channel power less than 500W, total power less than 1500W

Size (W*H*D)

484 * 502.4 * 386.4(mm)

Gross weight)

35.4kg
