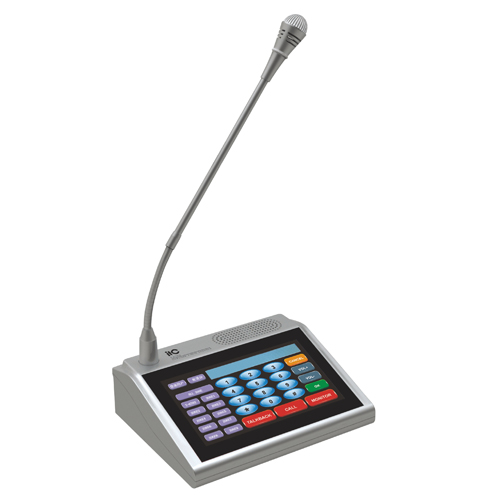

T-6702A
Specifications:
|
Model |
T-6702A |
|
Network Input |
Standard RJ45 |
|
Communication Protocol |
TCP/IP, UDP, IGMP (multicast) |
|
Audio Format |
MP3 |
|
Sampling Rate |
8K~48KHz |
|
Transmission Speed |
100Mbps |
|
Audio Mode |
16-bit CD sound quality |
|
Screen Size |
7 inch |
|
Screen Resolution |
800 x 480 pixel |
|
Screen Type |
65 k color DGUS screen |
|
Keyboard Types |
Virtual QWERTY keyboard |
|
keyboard Entry Method |
Touch |
|
Rated Power and Impedance of Build-in Speaker |
4Ω, 2W |
|
THD |
≤1% |
|
Frequency Response |
80Hz~16KHz |
|
S/N Ratio |
>68dB |
|
Rated Power and Impedance of PHONE OUT |
32Ω, 20mW |
|
Level of LINE OUT |
1000mV industrial standard press-line connecting terminals |
|
Line Output Impedance |
470Ω |
|
Line Input Sensitivity |
350mV industrial standard press-line connecting terminals |
|
Input Sensitivity of MIC |
10mV |
|
Short-circuit input |
Dry contact input |
|
Short-circuit Output |
Max 1A/30VD Dry contact output |
|
Working Temp |
5℃~40℃ |
|
Humidity |
20%~80% Relative humidity, without condensation |
|
Power Consumption |
≤6W |
|
Input Power Supply |
~190-240V 50/60Hz (power adapter); DC24V/2A |
|
Dimensions |
200 x 158 x 163 mm |
|
Weight |
1.2Kg
|
