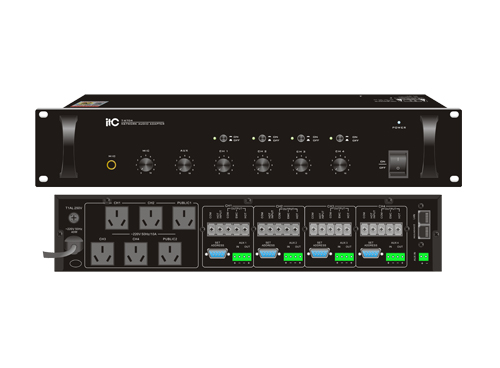

T-6704
Four Channel IP Network Audio Adapter (Rack Mount)
Description
Specifications:
|
Model |
T-6704 |
|
Network Input |
2 groups RJ45 |
|
Communication Protocol |
TCP/IP, UDP, IGMP (Multicast) |
|
Audio Format |
MP3 |
|
Sampling Rate |
8K~48KHz |
|
Transmission Speed |
100 Mbps |
|
Audio Mode |
16-bit CD sound quality |
|
Frequency Output |
80Hz~16KHz |
|
T.H.D |
≤0.3% |
|
S/N Ratio |
>70dB |
|
MIC Input Sensitivity |
5mV |
|
Four Zone Audio Input |
Four inputs, 350mV, industrial standard press-line connecting terminals |
|
Four Zone Audio Output |
Four outputs 1000mV industrial standard press-line connecting terminals |
|
Audio Output Impedance |
470Ω |
|
Working Temp |
5℃~40℃ |
|
Humidity |
20%~80% Relative humidity, without condensation |
|
Power Consumption |
≤40W |
|
Power Supply |
~220-240V 50/60Hz |
|
Dimensions |
484 x 303 x 88mm |
|
Weight |
6.28Kg
|
