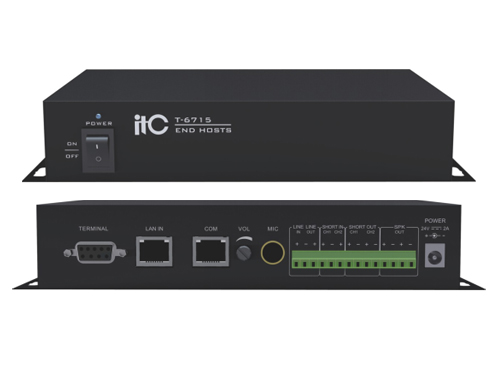

T-6715
IP Intercom Control Unit (Designed For Bank ATM Machine )
Description
Specifications:
|
Model |
T-6715 |
|
Network Interface |
Standard RJ45 input |
|
Communication Protocol |
TCP/IP, UDP, IGMP (multicast) |
|
Audio Format |
MP3 |
|
Sampling Rate |
8K~48KHz |
|
Transmission Speed |
100Mbps |
|
Audio Mode |
16-bit CD sound quality |
|
Frequency Response |
80Hz~16KHz |
|
T.H.D. |
≤1% |
|
S/N Ratio |
>85dB |
|
Audio Input Level |
350mV |
|
MIC Input Sensitivity (Unbalanced Input) |
5mV |
|
Power Output |
2 x 10W |
|
Short Circuit Input |
Dry contact input |
|
Short Circuit Output |
Max 3A/30VD Dry contact output |
|
Working Temperature |
5℃~40℃ |
|
Working Humidity |
20%~80% Relative humidity, without condensation |
|
Power Consumption |
≤30W |
|
Input Power Supply |
~190-240V 50-60Hz (power adapter); DC24V/2A |
|
Dimensions |
223 x 118 x 40mm |
|
Weight |
0.8Kg
|
