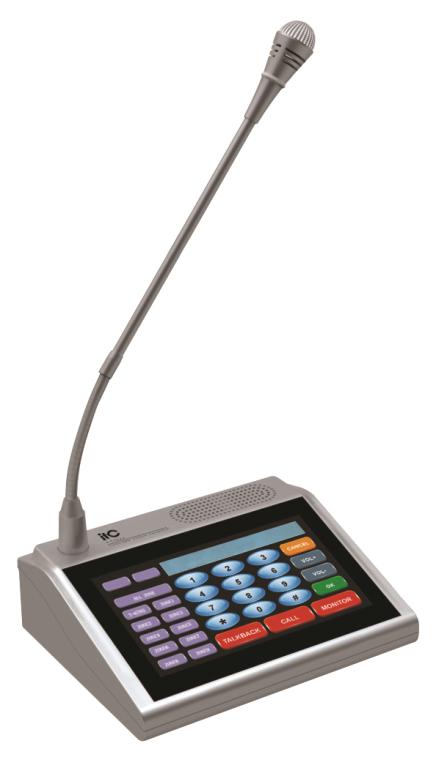

T-7702A

Model

T-7702A

Network Interface

Standard RJ45 input

Support Protocol

TCP/IP,UDP,IGMP (Multicast)

Audio Format

MP3

Sampling Rate

8K~48KHz

Transmission rate

100Mbps

Audio Mode

16 bit  CD quality

Display Size

7-inch

Screen Resolution

800 x 480 Pixel

Screen Type

65K Color DGUS Screen

Keyboard Type

virtual QWERTY Keyboard

Keyboard Input Type

Touch screen

Inscribed speaker impedance

and power rating

4Ω,2W

THD

≤1%

Frequency response

80Hz~16KHz  +1dB/-3dB

SNR

>65dB

PHONE OUT output impedance

and power rating

16Ω,2mW

LINE OUT Output Level

1000mV Industry standard wire terminals

LINE OUT Output Impedance

470Ω

LINE IN Input Sensitivity

350mV  Industry standard wire terminals

MIC Input Sensitivity(Unbalance)

10mV

Short-circuit input

Dry contact input

Short-circuit output

Max 1A/30VDC Dry contact input

Working Temperature

5℃~40℃

Working Moisture

20%~80%Relative humidity,

without condensation

Working Consumption

≤6W

Power Input

~190-240V 50-60Hz (power adapter);

DC24V/2A

Size

200×160×60 mm

Weight

1.2Kg
