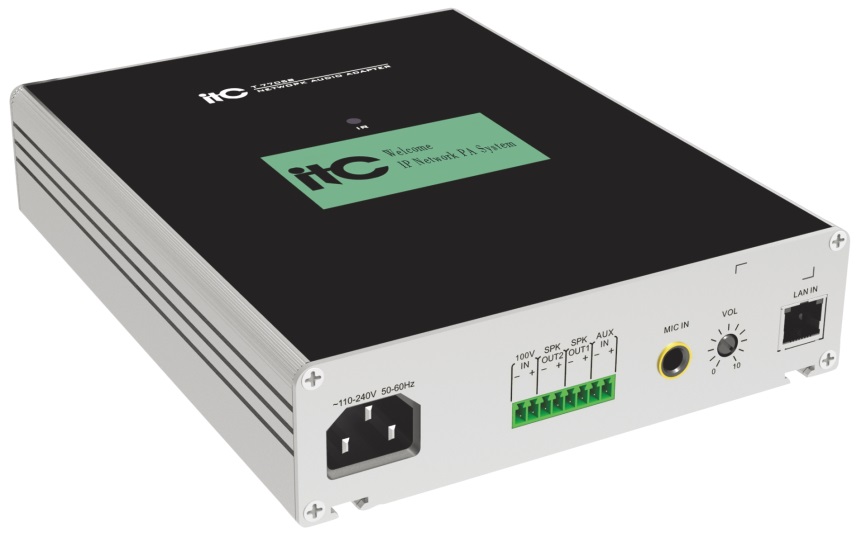

T-7705B
Terminal (Economic wall-mounted IP terminal - with Constant resistance power amplifier, constant pressure signal backup)
Description
Specifications:
|
Model |
T-7705B |
|
Network Interface |
Standard RJ45 input |
|
Support Protocol |
TCP/IP, UDP |
|
Audio Format |
MP3 |
|
Sampling Rate |
8K~48KHz |
|
Transmission Rate |
100Mbps |
|
Audio Mode |
16 bits CD sound quality |
|
Display Screen Size |
3.4inch |
|
Display Screen Type |
128 x 64Dot matrix display |
|
Operate Way |
Infrared remote control |
|
Remote Control Distance |
≤10m, Straight line, barrier-free |
|
Total Kore Wave Distortion |
≤1% |
|
Frequency Response |
80Hz~16KHz +1/-3dB |
|
SNR |
>65dB |
|
AUX Input Sensitivity |
350mV Industrial Standard Terminals |
|
MIC Input Sensitivity (Unbalanced) |
5mV |
|
Working Temperature |
5℃~40℃ |
|
Working Humidity |
20%~80%Relative humidity, no condensation |
|
Power Consumption |
≤70W |
|
Working Voltage |
~190-240V 50-60Hz, Power adapter DC 24V |
|
Size |
170 x 210 x 45 mm |
|
Weight |
1.5Kg |
