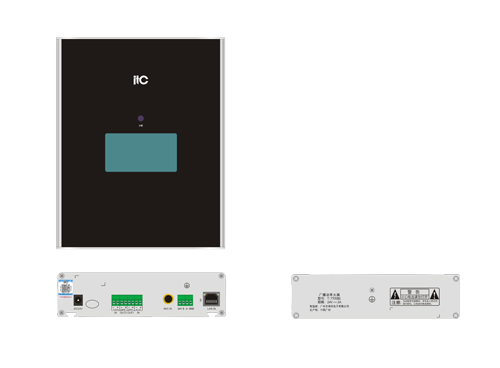

T-7705BS
IP Amplifier Terminal
Description
Specification:
|
Model |
T-7705BS |
|
Network interface |
Standard RJ45 input |
|
Communication protocol |
TCP/IP, UDP |
|
Audio format |
MP3 |
|
Sampling rate |
8kHz~48kHz |
|
Transmission rate |
100Mbps |
|
Audio mode |
16-bit CD quality |
|
Screen size |
3.4 inches |
|
Screen type |
128×64 dot matrix display |
|
Operation method |
Infrared remote control |
|
Remote control distance |
≤10M, straight-line and barrier-free distance |
|
THD |
≤1% |
|
Frequency response |
80Hz~ 16kHz +1/-3dB |
|
SNR |
>65dB |
|
AUX input sensitivity |
350mV industry standard crimp terminal block |
|
MIC input sensitivity (unbalanced) |
5mV |
|
Working temperature |
-10℃~45℃ |
|
Relative humidity |
20%~80%, no condensation |
|
Total power consumption |
≤70W |
|
485 interface |
Standard Industrial European Terminal Blocks |
|
Power voltage |
~190V-240V 50Hz-60Hz, power adapter DC24V |
|
Dimension |
170×210×45mm |
|
Net weight |
1.5kg |
