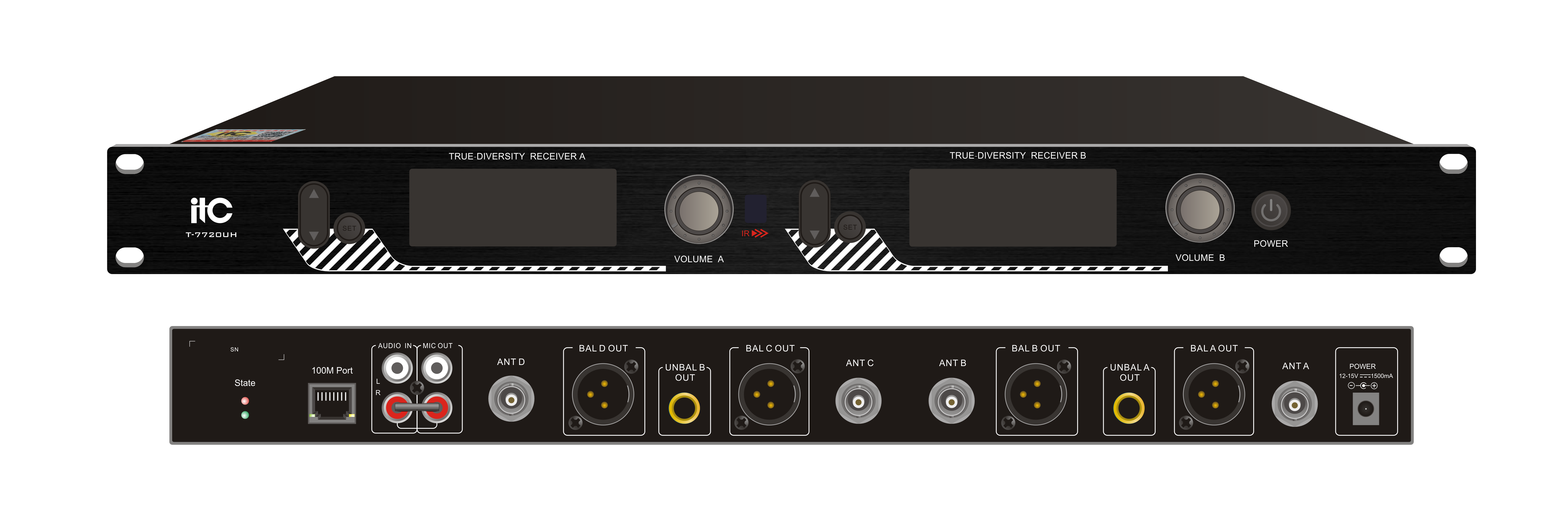

T-7720UH
Specifications:
|
Model |
T-7720UH |
|
System Indicator |
|
|
Internet Interface |
Standard RJ45 input |
|
Transmission Speed |
100Mbps |
|
Support Protocol |
TCP/IP, UDP |
|
Audio Format |
MP3 |
|
Audio Mode |
16-bit CD sound quality |
|
Sampling Rate |
8KHz~48KHz |
|
Bit Rate |
8Kbps ~ 512Kbps |
|
Frequency Response |
50Hz-18KHz (output), |
|
80Hz-16KHz (-3dB, 0dB) (input) |
|
|
Wireless Microphone |
640-690MHz, 740-790MHz, 807-830MHz |
|
Frequency Range |
|
|
Frequency Oscillation Mode |
Phase-locked loop |
|
Total Amount of Channels |
600CH |
|
Wireless Microphone |
200 meters (empty accessibility plus |
|
application Distance |
antenna amplification kit) |
|
Bandwidth |
25MHz |
|
Carrier Stability |
±5PPm≤10KHz |
|
False Interference Ratio |
>80dB |
|
Signal Noise Ratio |
>105dB (1KHz-A) |
|
Microphone Audio Output Level |
-12dB |
|
Mute Mode |
Mute and tone lock loop |
|
SNR(Signal to noise ratio) |
≥65dB |
|
Microphone Indicators |
|
|
Microphone Sensitivity |
-105dBm(12dB S/N AD) |
|
Microphone Distortion |
THD<0.5%@1kHz |
|
Microphone Output Impedance |
1000mV, 1 way lotus output interface |
|
Quantity |
2（1 remote control function） |
|
Receiver Indicators |
|
|
AUX Input Sensitivity |
350mV（Non-balance） |
|
MIC Output Range |
1000mV, 1 way lotus output interface |
|
AUX Output Impedance |
470Ω |
|
Display |
LCD |
|
Working Power |
12V-15V，800mA |
|
Harmonic Distortion |
THD≤1% |
|
Working Temperature |
5℃-40℃ |
|
Working Humidity |
20% ~ 80% No condensation |
|
Size（mm） |
484*235*44 |
|
Net Weight |
2.5Kg (Including antenna) |
|
Gross Weight |
3.9Kg
|
