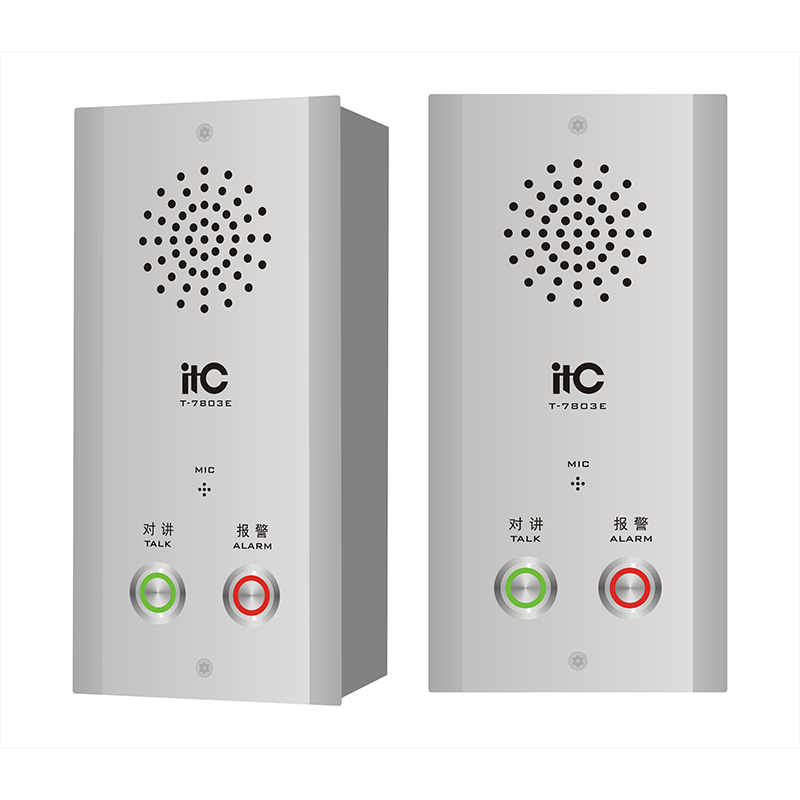

T-7803E

Model

T-7803E

Network interface

Standard RJ45 input

Transmission rate

100Mbps

Communication protocol

TCP/IP, UDP, IGMP(multicast), IETF SIP

Audio format

Mp3, WMA, WAV

Audio mode

16-bit CD sound quality

Sampling rate

8K~48KHz

AUX input

1 group

AUX sensitivity

350mV

MIC input

1 group

MIC sensitivity

10mV

Line out output

1 group

Line out level/impedance

1000mV/470Ω

Total power consumption

20W

Standby power consumption

<3W

Frequency response

Panel speaker: 314Hz~3.14KHz   -3dB/+1dB

SPK: 80Hz~16KHz     -3dB/+1dB

THD

≤1%

SNR

>65dB

Short-circuit input

0V/3.3V, support dry contact input

Short-circuit output

Maximum 1A/30VDC dry contact output

Working temperature

-20℃~60℃

Working humidity

20%~80% relative humidity, no condensation

Working voltage

~190-240V 50-60Hz(power adapter); DC24V/2A

Size

86×172×58mm

Weight

0.5Kg
