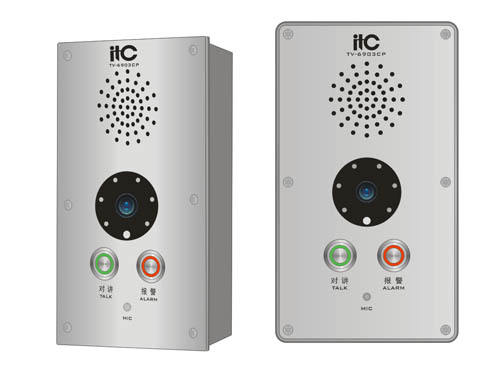

TV-6903CP
Specification:
|
Model |
TV-6903CP |
|
Network interface |
Standard RJ45 interface, support POE power supply |
|
Transmission rate |
10/100Mbps |
|
Communication protocol |
TCP/IP, UDP, IGMP, RTP, ONVIF |
|
Audio format |
ADPCM, PCM, MP3, WAV |
|
Audio protocol |
G.711 a/u, G.722, AAC |
|
Audio sampling rate |
16KHz～48KHz |
|
Audio mode |
16-bit stereo CD quality |
|
Built-in speaker impedance power |
4Ω, 5W |
|
MIC input sensitivity |
10mV |
|
Audio stream |
16Kb～256Kb |
|
Audio interface |
Built-in MIC, Line out |
|
THD |
<0.5% |
|
SNR |
>70dB |
|
Video format |
H.264 |
|
Video protocol |
SIP, RTMP, HTTP |
|
Video stream |
128Kb～2Mb |
|
Camera |
Built-in 1080P camera |
|
External interface |
3 GPIO ports (Configured with switch signals such as door magnetic); 2 relays (Configured with door lights, alarm linkage, electric lock, etc.); 1 RS485 port, connected to 485 door light |
|
Dimension (L×W×H) |
175×98×51.5mm |
|
Power supply |
External DC power supply, POE power supply |
|
Power voltage |
DC 12V |
|
Working temperature |
-20℃～+50℃ |
|
Relative humidity |
10%～90% |
|
Weight |
0.60kg |
