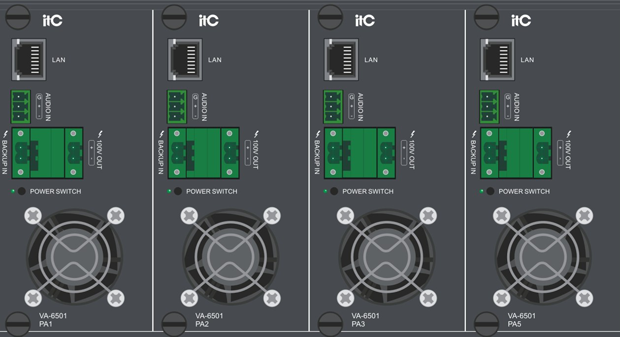

VA-6501 PA5
Amplifier Board
Description
Specification:
|
Model |
PA1 |
PA2 |
PA3 |
PA5 |
|
Input Voltage |
± 85 V DC |
|||
|
Output Voltage |
100V |
|||
|
Output Power |
120W |
|||
|
THD |
≤ 1% (rated output power), 1KHz |
|||
|
Frequency response |
40Hz-16KHz (+ 1dB,-3dB) |
|||
|
SNR |
≥ 80 dB |
|||
|
Heat dissipation mode |
Forced air cooling |
|||
|
Protection mode |
Over-voltage, over-current, high temperature, overload and short circuit protection | |||
|
Amplifier input |
Digital signal and 100V emergency audio signal |
|||
|
Emergency audio interface |
Balanced Input |
|||
|
Dimension |
L 124xW 60xH 263 |
|||
|
Weight |
1.1 kg |
|||
