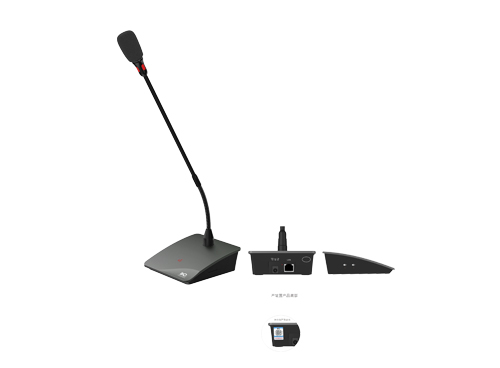

VA-6504 (BC31)

Model

VA-6504 (BC31)

Network interface

Standard RJ45

Communication protocol

Compatible with DHCP, TCP, UDP, ICMP, IGMP, ARP, etc.

Transmission rate

100Mbps

MIC sensitivity

-34±2dB (0dB=1V/Pa, at 1KHz)

MIC type

Cardioid Condenser Electret Microphone

Built-in speaker impedance

4Ω

Built-in speaker rated power

1.5W

THD

THD+N≤1%

Frequency response

80Hz~16KHz +1/-3dB

SNR

Line out>= 70dB(A); Microphone:>= 60dB(A)

Working temperature

-10℃~+55℃

Relative humidity

20%～80%, no condensation

Total power consumption

≤10W

Standard input DC power

DC12V/1A

Dimension

100×113×36mm

Net weight

0.7Kg

Installation method

Desktop
