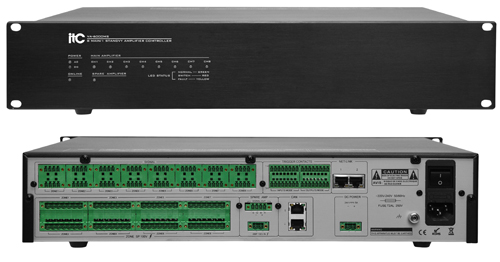

VA-6000MS
Specifications:
|
Model |
VA-6000MS |
|
AC Power Supply |
|
|
Voltage |
~220-240V 50/60Hz |
|
Maximum Current |
0.3A (not including the 4 wire strong cut output) |
|
Specification Of The Fuse |
250V/2A, slow speed type |
|
DC Power Supply |
|
|
Voltage |
24V DC, ±20% |
|
Maximum Current |
2A (not including the 4 wire strong cut output) |
|
Power |
48W |
|
Performance Index |
|
|
Parallel Signal Input / Output |
|
|
Distortion |
<1% (rated output power),1KHz |
|
Frequency |
80Hz~20KHz |
|
Sensitivity |
385mV |
|
Impedance |
10KΩ |
|
S/N Ratio |
>70dB |
|
Contact Output |
|
|
8 Relay Programmable Output |
Short circuit, no voltage |
|
8 ProgrammableTrigger Input |
8 programmable trigger input |
|
Level Model |
Highest 3.3V |
|
Short Circuit Mode |
No voltage, short circuit |
|
Cooling Way |
Air cooled |
|
Protection |
Delay / temperature / short / overload |
|
Mechanical Index |
|
|
Size (L x W x D) |
484 x 88 x 447 mm (19 inches wide, 2U) |
|
Weight |
About 7.8 Kg |
|
Installation |
Desktop or 19 inch cabinet |
|
Color |
Black |
|
Environmental Requirements |
|
|
Environmental Requirements |
+5℃ ~ +40℃ |
|
Storage Temperature |
-20℃ ~ +70℃ |
|
Relative Temperature |
<95% (no treatment)
|
