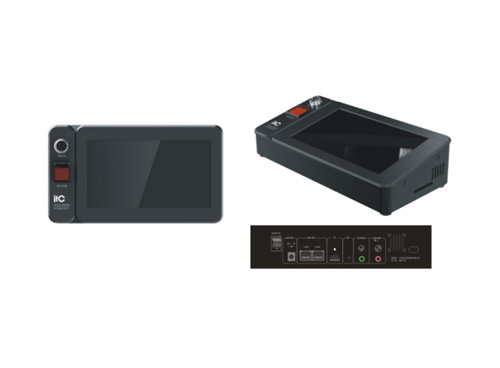

VA-6100RT
Remote Paging Microphone
Description
Specifications:
|
Screen |
|
|
Size |
7inch |
|
Resolution |
1024 x 600 |
|
Visual Angle |
Full Angle |
|
Touch Screen Type |
capacitive screen |
|
Power Supply |
|
|
Voltage |
DC24V, 18-31V adaptive |
|
Max Current |
0.5A |
|
Max Power Consumption |
12W |
|
Standby Power Consumption |
9W |
|
Performance Index |
|
|
Line Input |
|
|
Sensitivity |
775mV |
|
Input Impedance |
10kΩ |
|
MIC Input |
|
|
Microphone Type |
415mm Goose Neck MIC |
|
MIC Type |
Electret |
|
Sensitivity |
10mV |
|
Impedance |
250Ω |
|
Monitor Audio Output |
|
|
Rated Output |
0.7V |
|
Output Power |
30mW (Drive 16-32Ω earphone) |
|
Frequency Response |
200Hz~16KHz |
|
THD |
＜0.3%（Rated Output）,1KHz |
|
SNR |
>70dB |
|
Monitor Speaker |
|
|
Output Power |
1.5W |
|
Impedance |
4Ω |
|
Dimension |
218mm×120mm×55mm |
