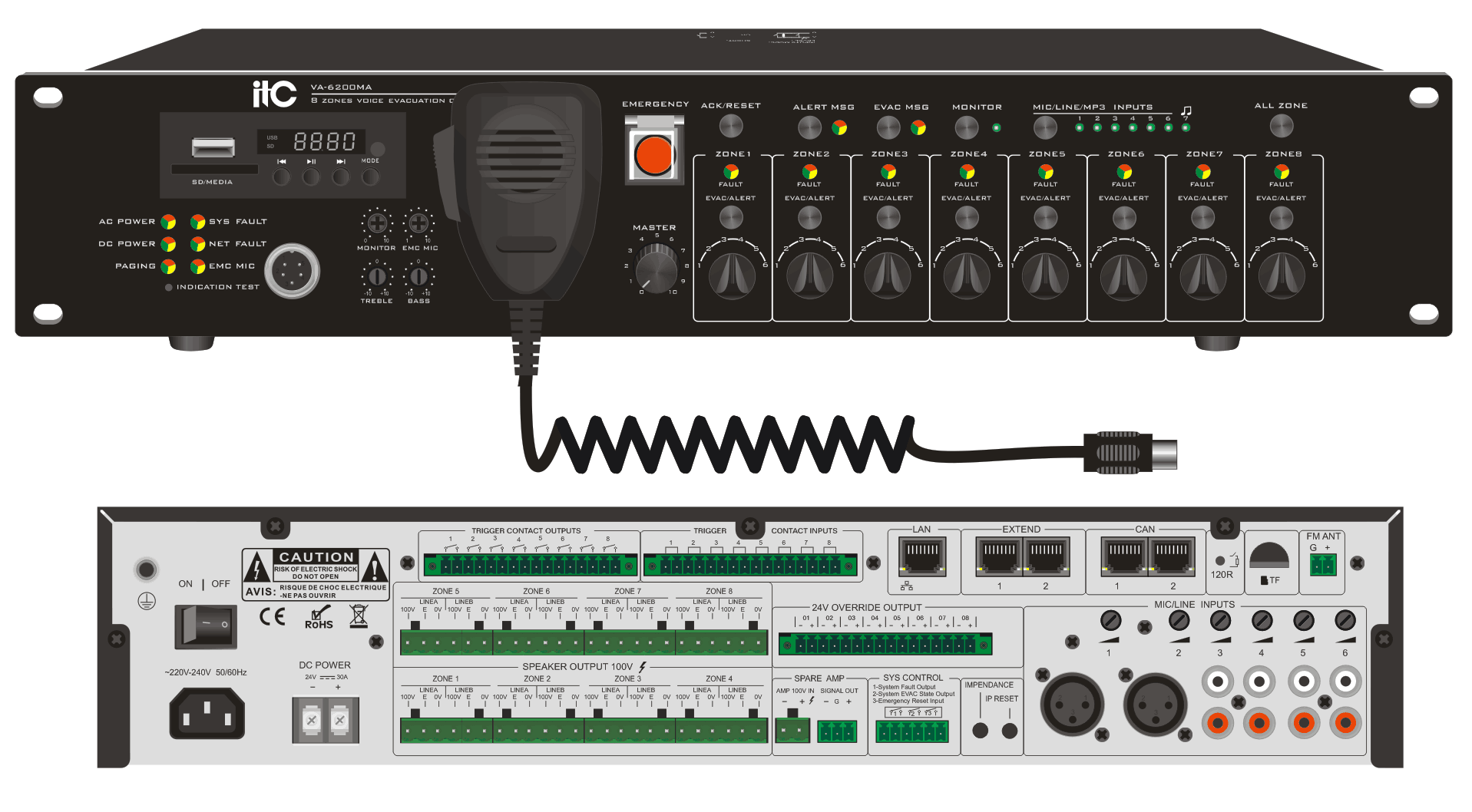

VA-6200MA
Specifications:
|
Model |
VA-6200MA |
|
Power output |
500W |
|
Output voltage |
100V |
|
MIC1-2 input distortion |
<1% (rated output power), 1KHz |
|
MIC1-2 input frequency response |
80Hz~20KHz |
|
MIC1-2 input sensitivity |
5mV/600Ω |
|
MIC1-2 input SNR |
>65dB |
|
AUX3-6 input distortion |
<1% (rated output power), 1KHz |
|
AUX3-6 input frequency response |
80Hz~20KHz |
|
AUX3-6 input sensitivity |
350mV/10kΩ |
|
AUX3-6 Input SNR |
>70dB |
|
Emergency microphone |
Emergency microphone |
|
Sensitivity |
10mV |
|
Impedance |
600Ω |
|
Standby amplifier input |
100V |
|
Standby amplifier audio output |
±385mV (balanced output) |
|
Alarm input |
8 channel |
|
Alarm Output |
8 channel |
|
Partition output |
8 channel |
|
24V relay output |
8 channel |
|
Short circuit mode |
No voltage, short connection |
|
Level mode |
Require external 10K and 4.7K resistors |
|
Cooling method |
Air-cooled |
|
Protection mode |
Delay / over temperature / short circuit / overload |
|
Output volume adjustment |
6 |
|
Built-in MP3 capacity |
16G |
|
Format |
MP3 |
|
Slave Controller Communication |
RS485 bus |
|
Slave Controller |
Support 19 slave controllers |
|
Remote MIC communication |
CAN bus |
|
Remote MIC |
Supports 32 remote MIC |
|
Supply voltage |
~ 220V-240V, 50/60Hz |
|
Maximum current |
3A |
|
Fuse specifications |
250V / 5A, slow type |
|
Standby voltage |
24V DC, ±20% |
|
Maximum current |
30A |
|
Maximum power consumption |
600W |
|
Dimension (L x W x D) |
484 x 88 x 353mm |
|
Weight |
About 10.8kg |
|
Installation method |
Desktop or 19" cabinet |
