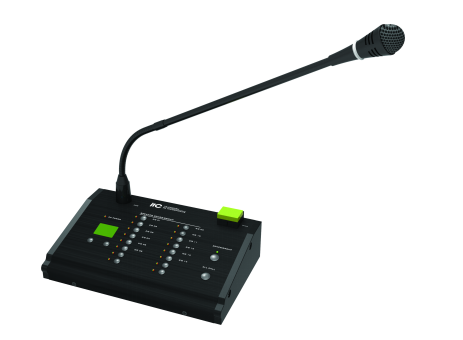

VA-6200RM
EVAC System Remote Paging Microphone
Description
Specifications:
|
Model |
VA-6200RM |
|
MIC |
Capacitor Microphone |
|
MIC Sensitivity |
10mV/600Ω |
|
MIC Frequency Response |
200Hz~10KHz |
|
MIC SNR |
>65dB |
|
Line Input Sensitivity |
775mV/10KΩ |
|
Line Input Frequency Response |
80Hz~16KHz |
|
Line Input SNR |
>70dB |
|
Signal Output |
1V |
|
Distortion |
<1% (Rated output power ), 1KHz |
|
Supply Voltage |
24V DC |
|
Dimension (L x W x D) |
256 x 52 x 149mm |
|
Net Weight |
1.3kg |
Back Panel
Connectors
1 Power switch
2 DC voltage input
3 Line Sound source input
4 Output volume adjustment
5 CAN Communication network port
6 Dial code setting:(Upward: Use Down: Close)
