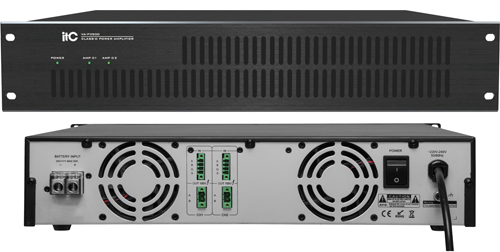

VA-P2500(2 x 500W)
Class-D Digital Amplifier
.jpg)
Description
Specifications:
|
Model |
VA-P2120 |
VA-P2240 |
VA-P2350 |
VA-P2500 |
||||||
|
AC power supply |
||||||||||
|
Voltage |
~ 220V 50Hz |
|||||||||
|
Working current |
1.4A |
2.6A |
4A |
5.5A |
||||||
|
DC power supply |
||||||||||
|
DC input |
DC~24V; ±20% |
|||||||||
|
Working current |
12.3A |
24A |
35A |
50A |
||||||
|
Power |
2x120W |
2x240W |
2x350W |
2x500W |
||||||
|
Power Consumption |
295W |
580W |
845W |
1200W |
||||||
|
Audio Parameter |
||||||||||
|
Input mode |
Balance 385mV |
|||||||||
|
Frequency Response |
40Hz-20KHz±3dB |
|||||||||
|
Output |
100V Constant Voltage |
|||||||||
|
THD |
≤1% (Rated Power THD), 1KHz |
|||||||||
|
SNR |
≥90dB |
|||||||||
|
Working Temperature |
5℃ ~ 40℃ |
|||||||||
|
Relative Humidity |
< 95% |
|||||||||
|
Cooling Mode |
Air-Cooled |
|||||||||
|
Protection |
Delay, Short Circuit, Overload, Over-temperature |
|||||||||
|
Dimensions |
484 x 478 x 88mm (Machine feet not included) |
|||||||||
|
Net weight |
9.8Kg |
10.6Kg |
10.26Kg |
10.49Kg
|
||||||
