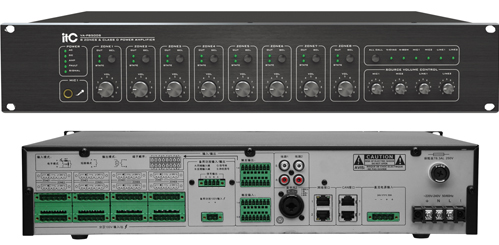

VA-P8500S
Specification：
|
Model |
VA-P8500S |
|
AC Power |
|
|
Voltage |
~220-240V 50/60Hz |
|
Maximum Current |
3A (Exclude the 4 wire override output) |
|
Fuse Size |
250V/6.3A, slow type |
|
DC Power |
|
|
Voltage |
24V DC, ±20% |
|
Maximum current |
27A(Exclude the 4 wire override output) |
|
Power Consumption |
650W |
|
Performance Index |
|
|
Line Input |
|
|
Distortion |
<1% (Rated output power),1KHz |
|
Frequency |
80Hz~20KHz |
|
Sensitivity |
775mV |
|
Impedance |
10KΩ |
|
S/N Ratio |
>70dB |
|
Emergency Mic |
|
|
Sensitivity |
5mV |
|
Impedance |
600Ω |
|
Contact Output |
|
|
8 Channels Programmable Relay Output |
Short Circuit, No voltage |
|
8 Channels Programmable Trigger Input |
8 channels programmable trigger input |
|
Level Mode |
Max 3.3V |
|
Short Circuit Mode |
No voltage, short circuit. |
|
Cooling Mode |
Air-Cooled |
|
Protection Mode |
Delay/Overheat/Short Circuit/Over Load |
|
Machine Index |
|
|
Dimension |
484 x 88 x 447mm (19' width, 2U) |
|
Weight |
About 11.5Kg |
|
Installation |
Desktop or 19 inch cabinet |
|
Color |
Black |
|
Environment Requirements |
|
|
Operation Temperature |
+5℃ ~ +40℃ |
|
Storage Temperature |
-20℃ ~ +70℃ |
|
Relative Temperature |
<95% (No condensation)
|
