VS1239

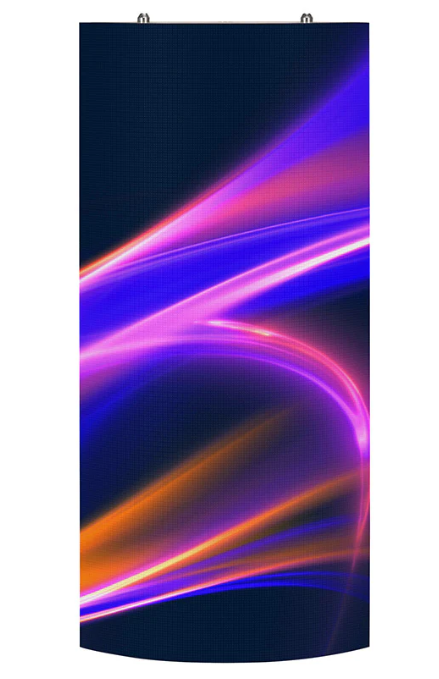

An accessory to the VS1, Vision Series LED panel, the VS1C is a 1.95mm curved LED panel section designed to sit between two VS1 panels to create a seamless 90-degree corner.
Description
Specifications
SPECIFICATIONS:
- Pixel Pitch: 1.95mm (0.07”)
- LED Configuration: MiniLED 4-in-1
- Pixel Density: 256x256; 262144 per square meter
- Size : 9.8” x 19.68” x3.86” /250 x 500x98
- Module Quantity: 4
- Weight: 9.5 lbs. / 4.3 kg.
FEATURES:
- Rear serviceable: Video modules on each panel can be easily replaced.
- The box is equipped with quick locks on the top, bottom, left, and right sides, enabling quick assembly with the VS2 panel.
- Each panel contains four easily replaceable modules after full box maintenance.
- The power box can be disassembled and assembled independently, ensuring simple and convenient installation and maintenance.
MECHANICAL RATINGS:
- Surface Flatness: Gaps<0.2mm
OPTICAL RATINGS:
- Brightness: 1500 NITS
- View Angle: Based on the center of the lamp bead, Horizontal 110°/Vertical 110°
- Gray Scale: ≥14-bit
- Display Color: 256
- Brightness Adjustment: 0~100% 100 Levels
- Contrast ratio: 5000:1
- Processing: 14-bit
POWER SUPPLY:
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 75W/per panel
- Ave. Power Consumption: 30W/per panel
- Connections Power/Data: PowerLock In/Out; DataLock In/Out
CONTROL SYSTEM:
- Control Mode: Nova Star Synchronous System with Control via DVI
- Frame Update Frequency: 50-75Hz
- Scan Mode: 1/21
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Control Distance: Ethernet Cable <120m or Fiber Optic>120m
- Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
- Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:
- Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
- Operating Life / MTBF: 50,000 Hours / 5,000 Hours
- Protection Level: IP20 (Front and Back)
- Out of Control Rate: <0.02%
- Listings: cETLus (Pending)
OPTIONAL ACCESSORIES FOR VS1C:
- Novastar VX4S: Video Processor
- Novastar MCTRL-300: Video Processor
- Novastar Nova Pro HD: Video Processor
- Arkaos Media Master: Video Software
- Arkaos GrandVJ 2.0: Video Software
CABLES:
- Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
- Power Locking Link Cables
- Power Locking Main Power Cables
Certifications:
- cETLus (Pending)
*Specifications are subject to change without notice.
